CESD1006NC5VB - ESD Protection Diode

Key Features

  • 60Watts peak pulse power (tp = 8/20us).
  • DFN1006 package.
  • Bidirectional configurations.
  • Solid-state silicon-avalanche technology.
  • Low clamping voltage.
  • Low leakage current.
  • Medium capacitance (CJ=6pF typ. ).
  • Protection one data/power line to: IEC 61000-4-2 ±8kV contact ±15kV air IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 6A (8/20μs).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CESD12VAP ESD Protection Diode JCET
CESD12VCP ESD Protection Diode JCET
CESD12VD3 ESD Protection Diode JCET
CESD12VD5 ESD Protection Diode JCET
CESD12VD5 ESD ProtectionDiodes SMC Diode

Other Datasheets by E-CMOS

Part Number Description
CESD2510LC5VU Low Capacitance ESD TVS Array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

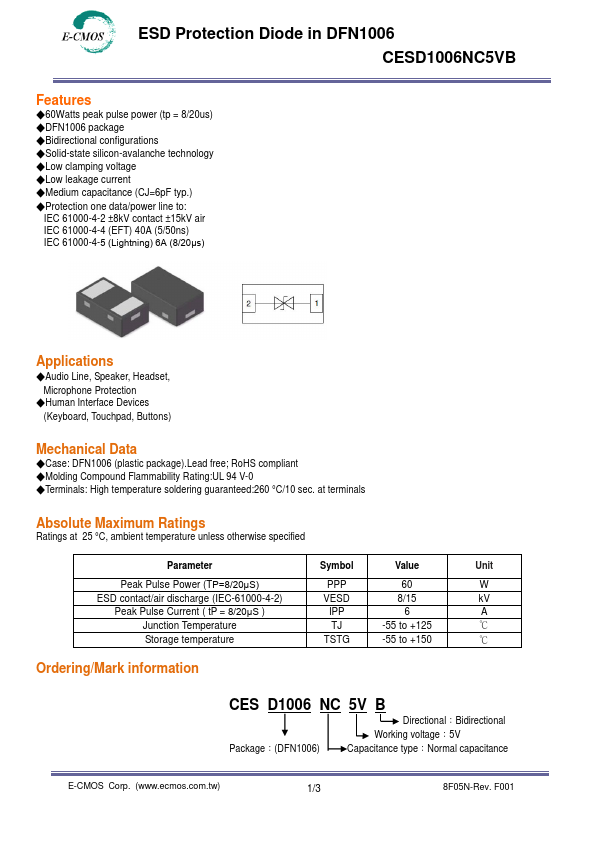

ESD Protection Diode in DFN1006 CESD1006NC5VB Features ◆60Watts peak pulse power (tp = 8/20us) ◆DFN1006 package ◆Bidirectional configurations ◆Solid-state silicon-avalanche technology ◆Low clamping voltage ◆Low leakage current ◆Medium capacitance (CJ=6pF typ.) ◆Protection one data/power line to: IEC 61000-4-2 ±8kV contact ±15kV air IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 6A (8/20μs) Applications ◆Audio Line, Speaker, Headset, Microphone Protection ◆Human Interface Devices (Keyboard, Touchpad, Buttons) Mechanical Data ◆Case: DFN1006 (plastic package).Lead free; RoHS compliant ◆Molding Compound Flammability Rating:UL 94 V-0 ◆Terminals: High temperature soldering guaranteed:260 °C/10 sec.
