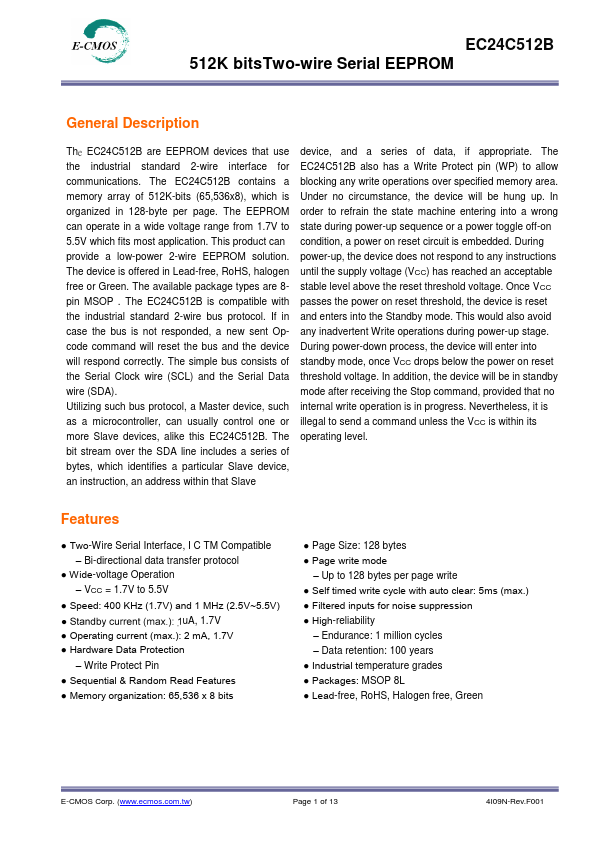

EC24C512B Description
The EC24C512B are EEPROM devices that use the industrial standard 2-wire interface for munications. The EC24C512B contains a memory array of 512K-bits (65,536x8), which is organized in 128-byte per page. The EEPROM can operate in a wide voltage range from 1.7V to 5.5V which fits most application.
EC24C512B Key Features
- Two-Wire Serial Interface, I C TM patible
- Bi-directional data transfer protocol
- Wide-voltage Operation
- VCC = 1.7V to 5.5V
- Speed: 400 KHz (1.7V) and 1 MHz (2.5V~5.5V) uA, 1.7V
- Operating current (max.): 2 mA, 1.7V
- Hardware Data Protection
- Write Protect Pin
- Sequential & Random Read Features
- Memory organization: 65,536 x 8 bits
