EC24C512A
EC24C512A is 512K bitsTwo-wire Serial EEPROM manufactured by E-CMOS.
EC24C512A 512K bits Two-wire Serial EEPROM
General Description
Features

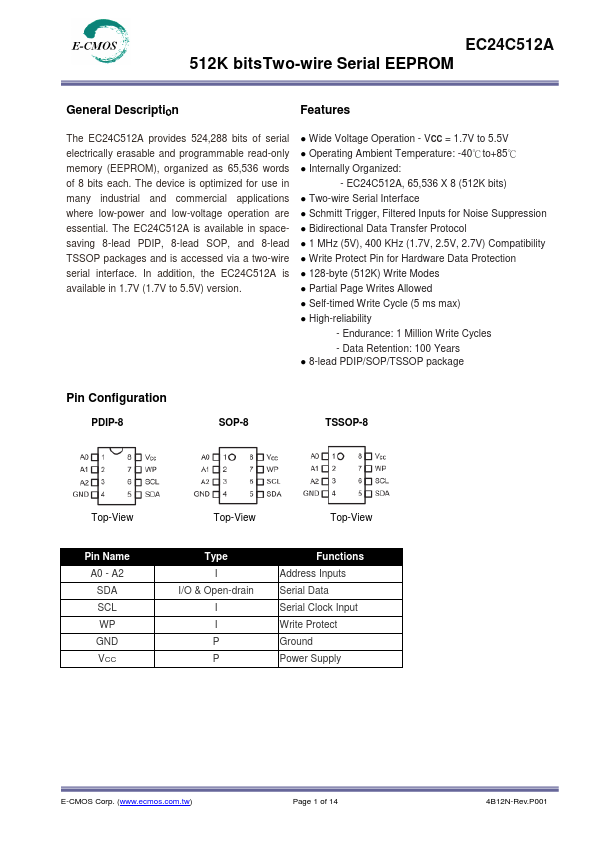

The EC24C512A provides 524,288 bits of serial electrically erasable and programmable read-only memory (EEPROM), organized as 65,536 words of 8 bits each. The device is optimized for use in many industrial and mercial applications where low-power and low-voltage operation are essential. The EC24C512A is available in spacesaving 8-lead PDIP, 8-lead SOP, and 8-lead TSSOP packages and is accessed via a two-wire serial interface. In addition, the EC24C512A is available in 1.7V (1.7V to 5.5V) version.
- Wide Voltage Operation
- VCC = 1.7V to 5.5V
- Operating Ambient Temperature: -40℃to+85℃
- Internally Organized:
- EC24C512A, 65,536 X 8 (512K bits)
- Two-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
- 1 MHz (5V), 400 KHz (1.7V, 2.5V, 2.7V) patibility
- Write Protect Pin for Hardware Data Protection
- 128-byte (512K) Write Modes
- Partial Page Writes Allowed
- Self-timed Write Cycle (5 ms max)
- High-reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- 8-lead PDIP/SOP/TSSOP package
Pin Configuration
PDIP-8
SOP-8
TSSOP-8
Top-View
Pin Name A0
- A2 SDA SCL WP GND VCC
Top-View
Top-View...
