EC24C512C

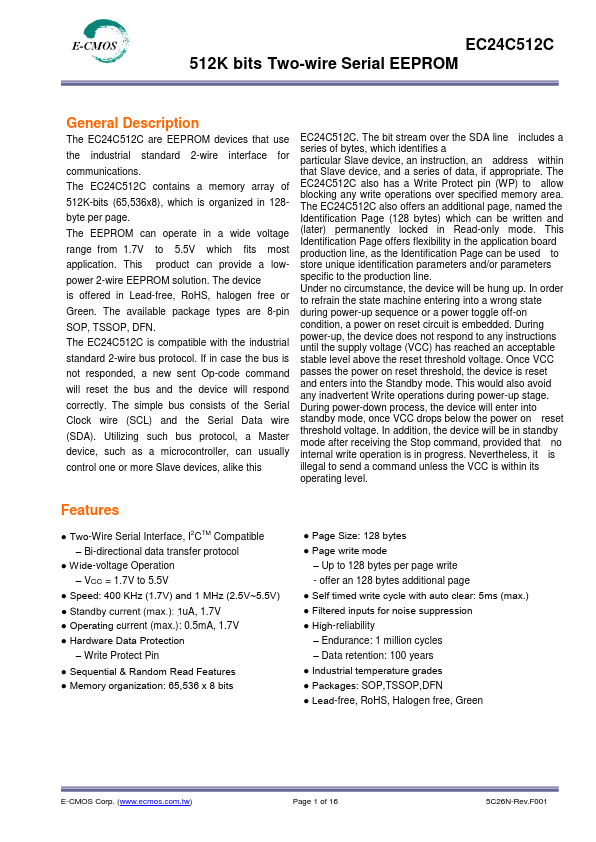

Description
The EC24C512C are EEPROM devices that use the industrial standard 2-wire interface for munications. The EC24C512C contains a memory array of 512K-bits (65,536x8), which is organized in 128byte per page. The EEPROM can operate in a wide voltage range from 1.7V to 5.5V which fits most application. This product can provide a lowpower 2-wire EEPROM solution. The device is offered in Lead-free, Ro HS, halogen free or Green. The available package types are 8-pin SOP, TSSOP, DFN. The EC24C512C is patible with the industrial standard 2-wire bus protocol. If in case the bus is not responded, a new sent Op-code mand will reset the bus and the device will respond correctly. The simple bus consists of the Serial Clock wire (SCL) and the Serial Data wire (SDA). Utilizing such bus protocol, a Master device, such as a microcontroller, can usually control one or more Slave devices, alike this
EC24C512C. The bit stream over the SDA line includes a series of bytes, which identifies a...
