EC24C64A - 64K-bit 2-WIRE SERIAL CMOS EEPROM

This page provides the datasheet information for the EC24C64A, a member of the EC24C32A 64K-bit 2-WIRE SERIAL CMOS EEPROM family.

Description

The EC24C32A/EC24C64A provides 32,768/65,536 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 4096 /8192 words of 8 bits each.

Features

  • Wide Voltage Operation - VCC = 1.7V to 5.5V.
  • Operating Ambient Temperature: -40°C to +85°C.
  • Internally Organized: - EC24C32A, 4096 X 8 (32K bits) - EC24C64A, 8192 X 8 (64K bits).
  • Two-wire Serial Interface.
  • Schmitt Trigger, Filtered Inputs for Noise Suppression.
  • Bidirectional Data Transfer Protocol.
  • 1 MHz (5V), 400 kHz (1.7V, 2.5V, 2.7V) Compatibility.
  • Write Protect Pin for Hardware Data Protection.
  • 32-byte Page (32K, 64K) Write Modes.
  • Partial Pa.

📥 Download Datasheet

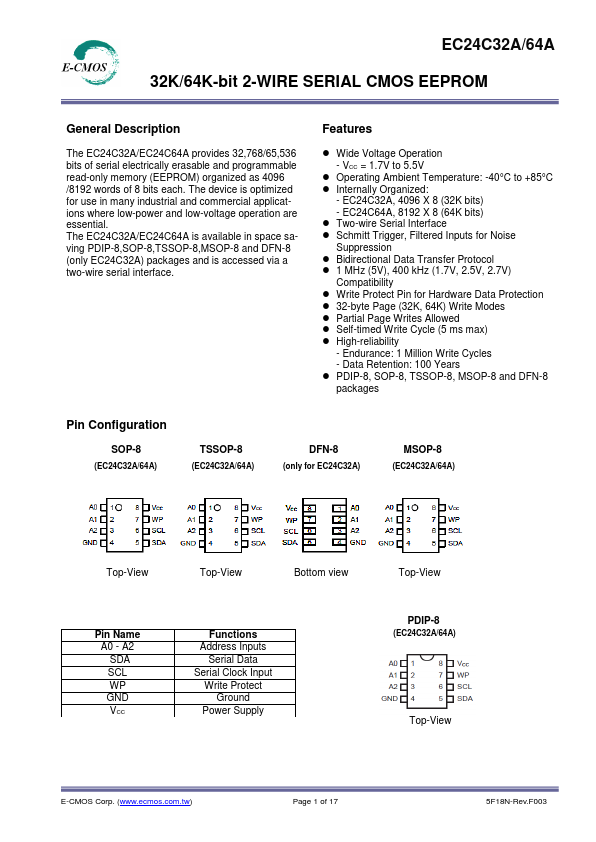

Datasheet preview – EC24C64A

Datasheet Details

Part number EC24C64A
Manufacturer E-CMOS
File Size 442.69 KB
Description 64K-bit 2-WIRE SERIAL CMOS EEPROM
Datasheet download datasheet EC24C64A Datasheet

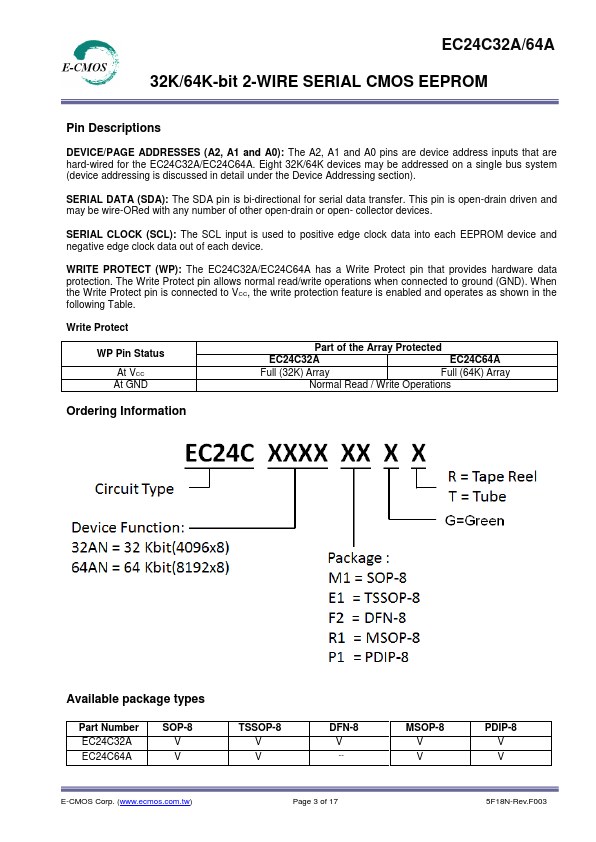

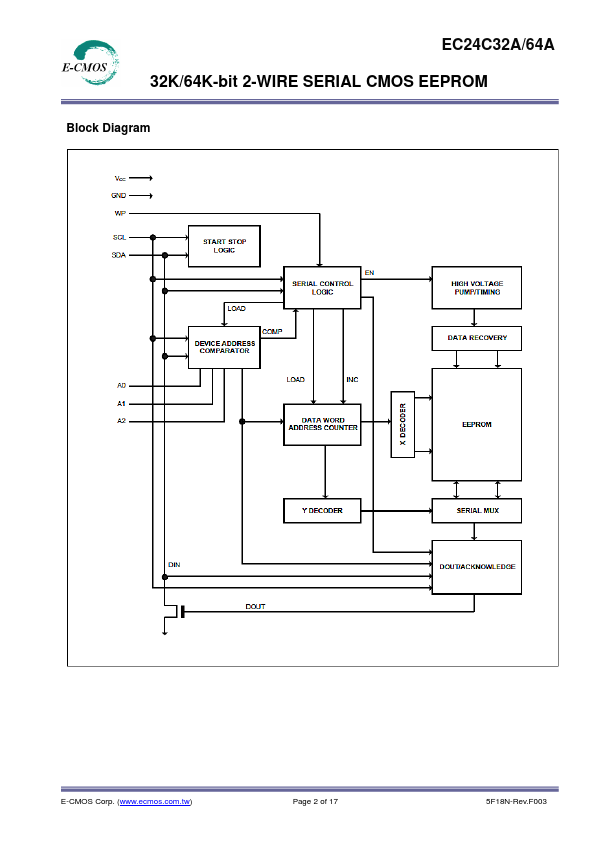

Additional preview pages of the EC24C64A datasheet.
