EC24C64C - 64K bits Two-wire Serial EEPROM

Description

The EC24C64C is an industrial standard electrically erasable programmable read only memory (EEPROM) device that utilizes the industrial standard 2-wire interface for communications.

The EC24C64C contains a memory array of 64K bits (8,192x8), which is organized in 32-byte per page.

Features

  • Two-Wire Serial Interface, I2CTM Compatible.
  • Bi-directional data transfer protocol.
  • Wide-voltage Operation.
  • VCC = 1.7V to 5.5V.
  • Speed: 400 KHz (1.7V) and 1 MHz (2.5V~5.5V) uA, 1.7V.
  • Operating current (max. ): 0.8mA, 5.5V.
  • Hardware Data Protection.
  • Write Protect Pin.
  • Sequential & Random Read Features.
  • Memory organization: 8,192 x 8 bits.
  • Page Size: 32 bytes.
  • Page write mode.
  • partial page writes allowed.
  • Additio.

📥 Download Datasheet

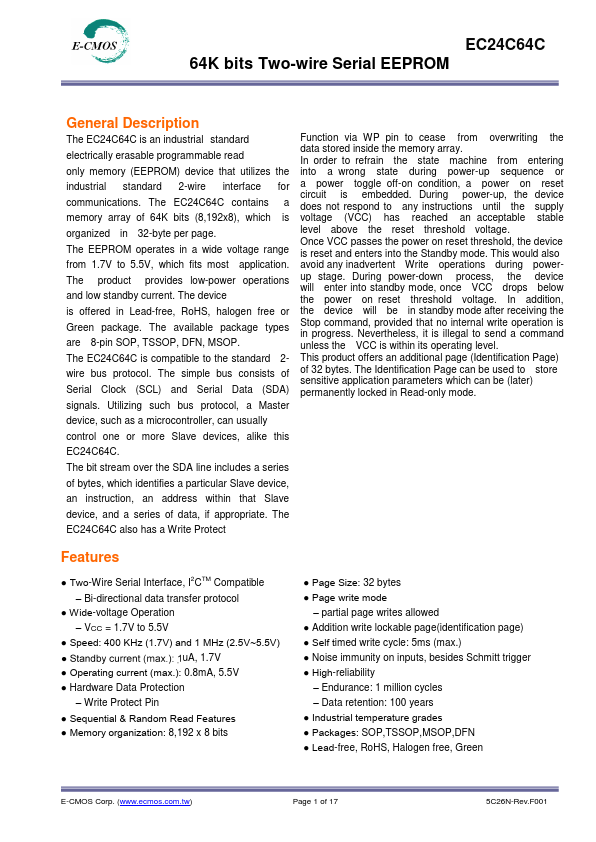

Datasheet preview – EC24C64C

Datasheet Details

Part number EC24C64C
Manufacturer E-CMOS
File Size 447.97 KB
Description 64K bits Two-wire Serial EEPROM
Datasheet download datasheet EC24C64C Datasheet

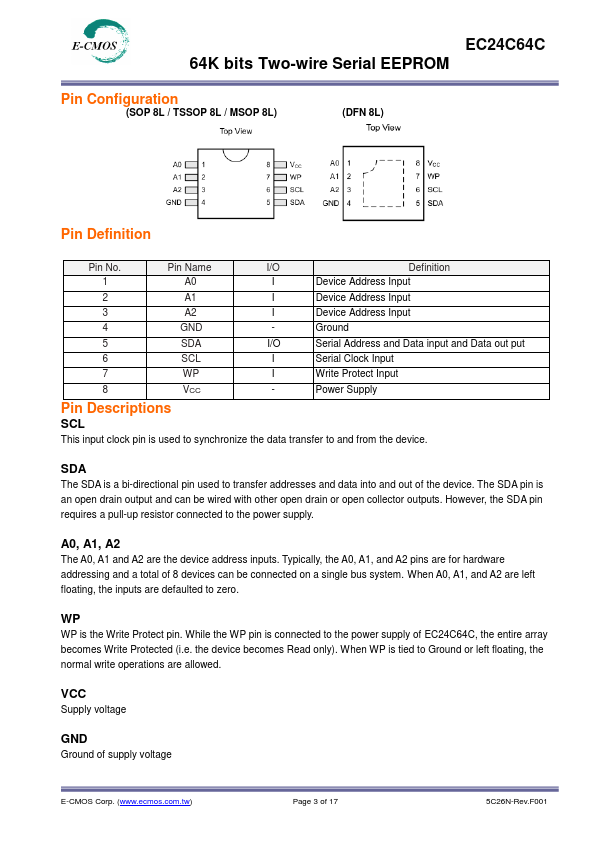

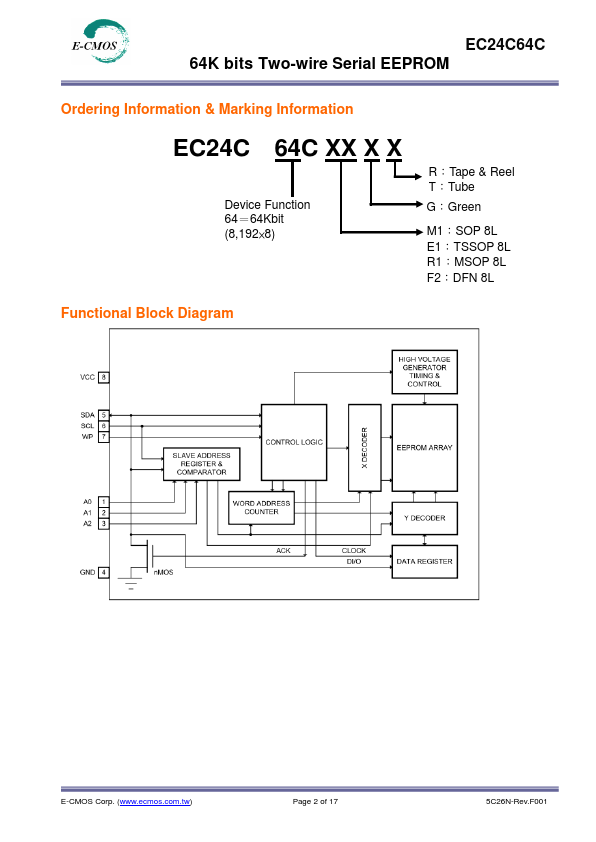

Additional preview pages of the EC24C64C datasheet.
