EC25C256 - 256Kbits SPI Serial EEPROM

Datasheet Summary

Description

The EC25C256 is an industrial standard electrically erasable programmable read only memory (EEPROM) Product that utilizes standard Serial Peripheral Interface (SPI) for communications.

The EC25C256 contains a memory array of 256K bits (32,768x 8), which is organized in 64 bytes per page.

Features

  • Serial Peripheral Interface (SPI) Compatible.
  • Supports Mode 0 (0,0) and Mode 3 (1,1).
  • Wide-voltage Operation.
  • VCC = 1.7V to 5.5V.
  • Low power CMOS.
  • Standby current: ≤1 μA (1.7V).
  • Operating current: ≤2 mA (1.7V).
  • Operating frequency: 20 MHz (5.5V).
  • Memory organization: 256Kb (32,768 x 8).
  • Byte and Page write (up to 64 bytes).
  • Partial page write allowed.
  • Block Write Protection.
  • Protect 1/4, 1/2, or Entire Array.
  • Sel.

📥 Download Datasheet

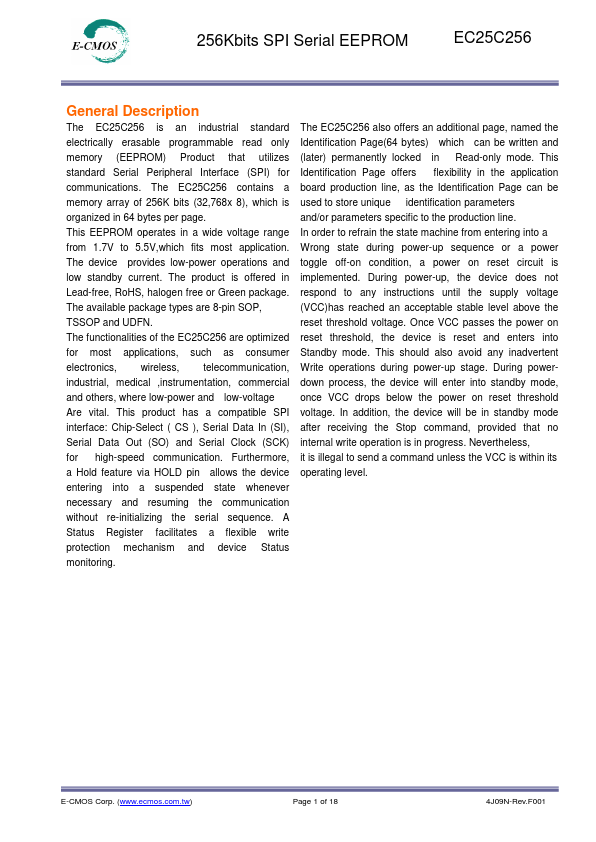

Datasheet preview – EC25C256

Datasheet Details

Part number EC25C256
Manufacturer E-CMOS
File Size 695.10 KB
Description 256Kbits SPI Serial EEPROM
Datasheet download datasheet EC25C256 Datasheet

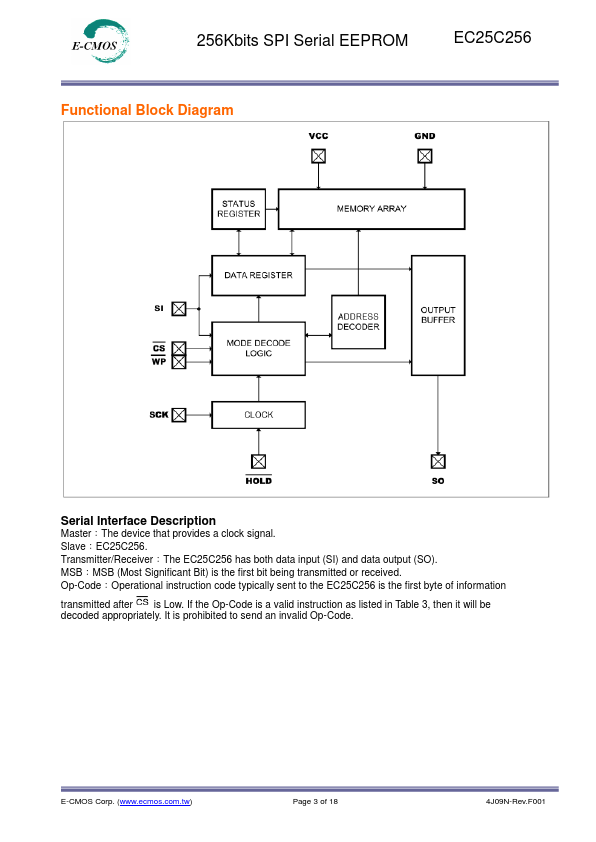

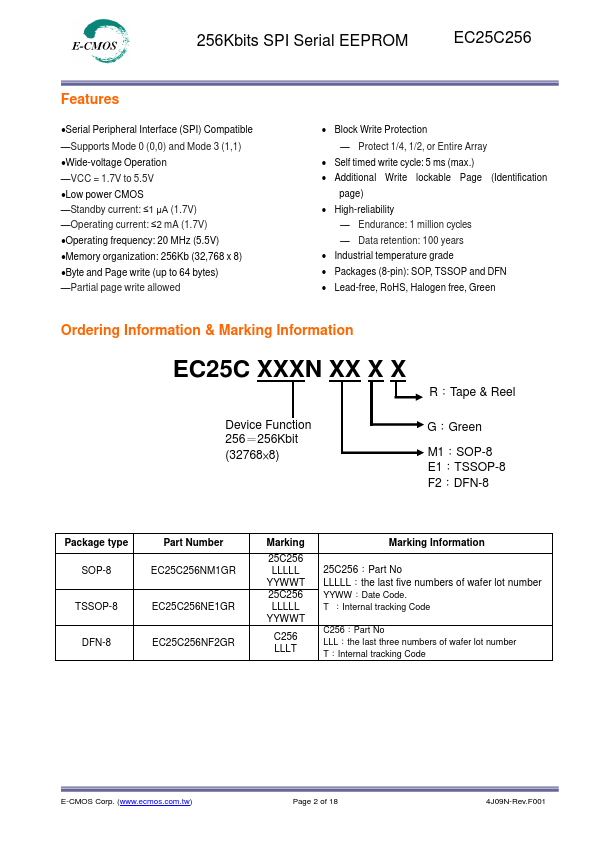

Additional preview pages of the EC25C256 datasheet.

📁 Similar Datasheet

  • EC25 - OSCILLATOR (Ecliptek Corporation)
  • EC2 - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12 - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12ND - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12NJ - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12NJ - Miniature Signal Relays (KEMET)
  • EC2-12NP - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12NQJ - Miniature Signal Relays (KEMET)
  • EC2-12NU - MINIATURE SIGNAL RELAY (NEC)
  • EC2-12NU - Miniature Signal Relays (KEMET)
Other Datasheets by E-CMOS
  • EC25C32 - 32Kbits SPI Serial EEPROM
  • EC24C128A - 128K-bit 2-WIRE SERIAL CMOS EEPROM
  • EC24C256A - 256K-bit 2-WIRE SERIAL CMOS EEPROM
  • EC24C512A - 512K bitsTwo-wire Serial EEPROM
  • EC2621 - Micropower CMOS Output Hall Effect Switch
  • EC2648 - CMOS High Sensitivity Micropower Hall-Effect Switch
  • EC2960 - Source and Shink 1.5A/2A Fast Transient Response Line Regulator

Full PDF Text Transcription

Click to expand full text
256Kbits SPI Serial EEPROM EC25C256 General Description The EC25C256 is an industrial standard electrically erasable programmable read only memory (EEPROM) Product that utilizes standard Serial Peripheral Interface (SPI) for communications. The EC25C256 contains a memory array of 256K bits (32,768x 8), which is organized in 64 bytes per page. This EEPROM operates in a wide voltage range from 1.7V to 5.5V,which fits most application. The device provides low-power operations and low standby current. The product is offered in Lead-free, RoHS, halogen free or Green package. The available package types are 8-pin SOP, TSSOP and UDFN.
