EC8525 - 35V 200mA Low Dropout LDO

Download the EC8525 datasheet PDF. This datasheet also covers the EC8518 variant, as both devices belong to the same 35v 200ma low dropout ldo family and are provided as variant models within a single manufacturer datasheet.

General Description

EC85XX series is designed for power-sensitive applications.

It includes a precision and high voltage input stage, an ultralow-power bias current branch, and results in a ultra-low-power and low-dropout linear regulator.

The EC85XX operates from an input voltage of VOUT+1V to 35V, consumes only 2.

Key Features

  • include shortcircuit protection and thermal shutdown. Feature.
  • Ultra Low Quiescent Current: 2.6µA(Typ. ).
  • Wide Operating Voltage: VOUT+1V to 35V.
  • High output current: ≥200mA.
  • System startup with no overshoot.
  • Short circuit protection is designed with no overshoot.
  • Low Dropout Voltage.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EC8518-ECMOS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EC8525
Manufacturer E-CMOS
File Size 209.11 KB
Description 35V 200mA Low Dropout LDO
Datasheet download datasheet EC8525 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EC80 Triode LA RADIOTECHNIQUE
EC80 UHF Triode Philips
EC80 UHF Triode ETC
EC80 S.Q. Tube Philips
EC8010 UHF Power Triode TELEFUNKEN

Other Datasheets by E-CMOS

Part Number Description
EC8518 35V 200mA Low Dropout LDO
EC8530 35V 200mA Low Dropout LDO
EC8536 35V 200mA Low Dropout LDO
EC8540 35V 200mA Low Dropout LDO
EC8542 35V 200mA Low Dropout LDO

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

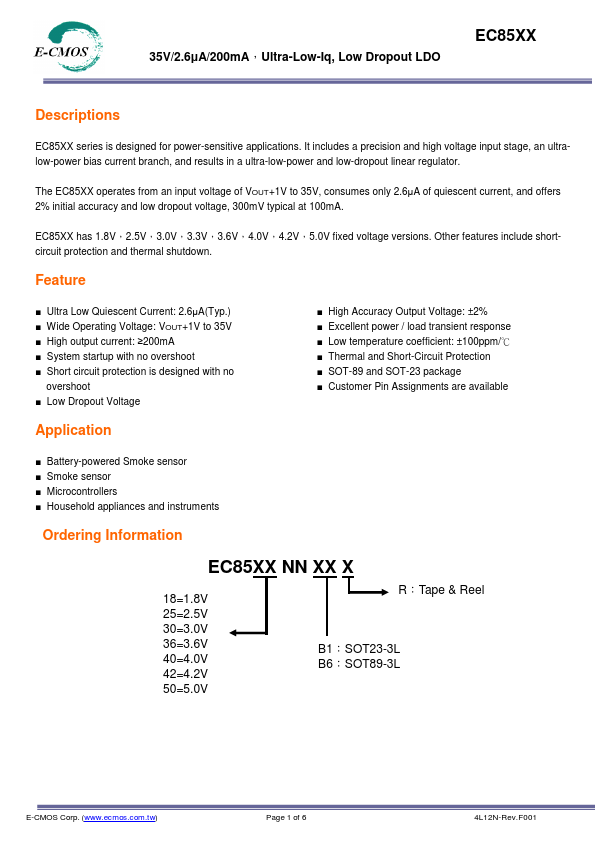

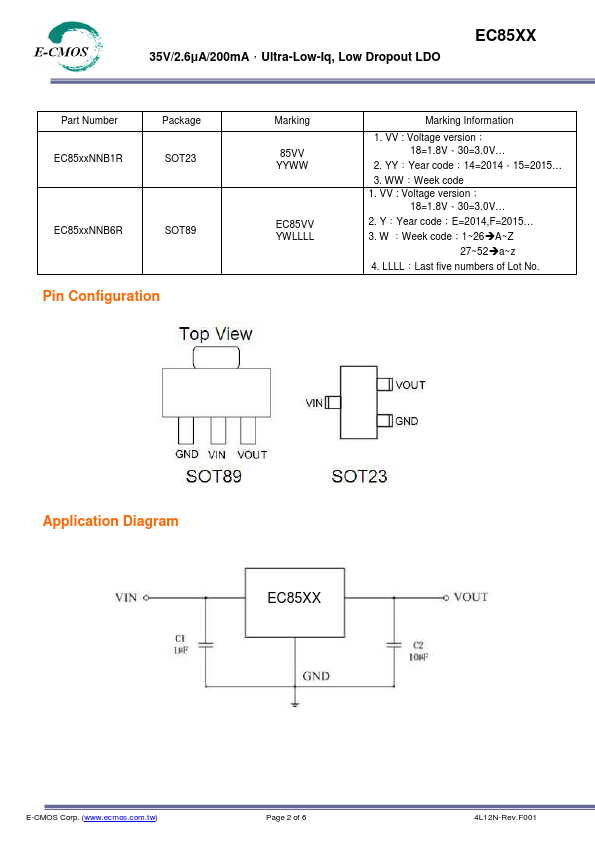

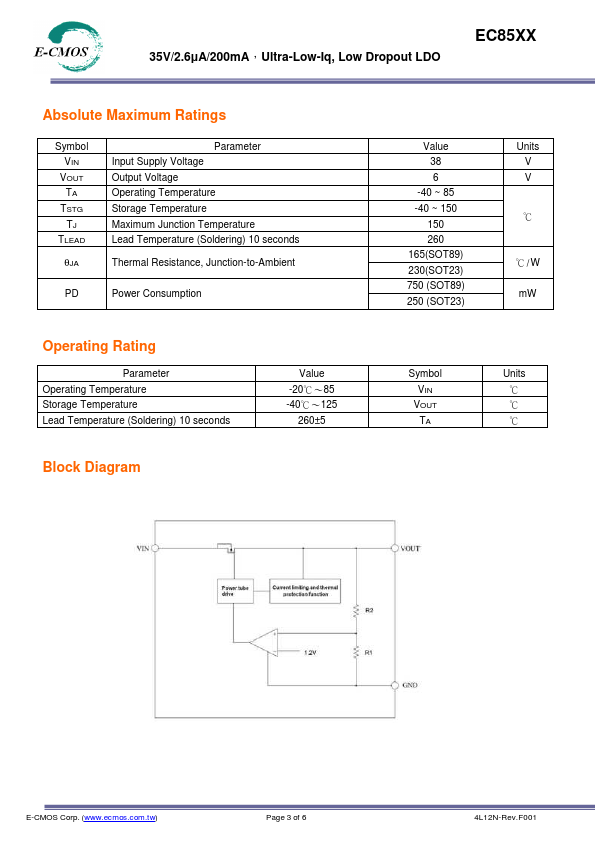

35V/2.6µA/200mA，Ultra-Low-Iq, Low Dropout LDO EC85XX Descriptions EC85XX series is designed for power-sensitive applications. It includes a precision and high voltage input stage, an ultralow-power bias current branch, and results in a ultra-low-power and low-dropout linear regulator. The EC85XX operates from an input voltage of VOUT+1V to 35V, consumes only 2.6µA of quiescent current, and offers 2% initial accuracy and low dropout voltage, 300mV typical at 100mA. EC85XX has 1.8V 2.5V 3.0V 3.3V 3.6V 4.0V 4.2V 5.0V fixed voltage versions. Other features include shortcircuit protection and thermal shutdown. Feature ■ Ultra Low Quiescent Current: 2.6µA(Typ.
