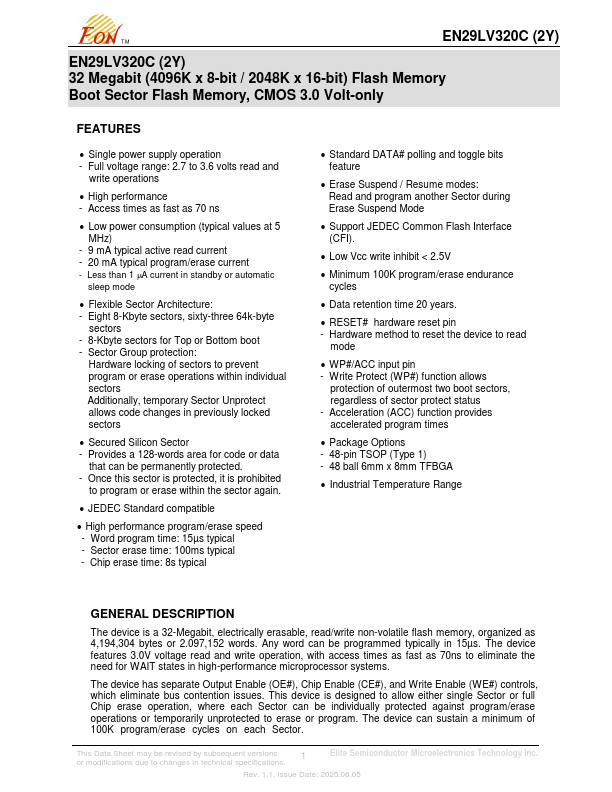

EN29LV320C
Overview
The device is a 32-Megabit, electrically erasable, read/write non-volatile flash memory, o.
- Single power supply operation - Full voltage range: 2.7 to 3.6 volts read and write operations
- High performance - Access times as fast as 70 ns
- Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 A current in standby or automatic sleep mode
- Flexible Sector Architecture: - Eight 8-Kbyte sectors, sixty-three 64k-byte sectors - 8-Kbyte sectors for Top or Bottom boot - Sector Group protection: Hardware locking of sectors to prevent program or erase operations within individual sectors Additionally, temporary Sector Unprotect allows code changes in previously locked sectors
- Secured Silicon Sector - Provides a 128-words area for code or data that can be permanently protected. - Once this sector is protected, it is prohibited to program or erase within the sector again.
- JEDEC Standard compatible
- High performance program/erase speed - Word program time: 15µs typical - Sector erase time: 100ms typical - Chip erase time: 8s typical
- Standard DATA# polling and toggle bits feature
- Erase Suspend / Resume modes: Read and program another Sector during Erase Suspend Mode
- Support JEDEC Common Flash Interface (CFI).
