EN29LV320CT Datasheet 32 Megabit Flash Memory Boot Sector Flash Memory

Manufacturer: ESMT (Elite Semiconductor Microelectronics Technology)

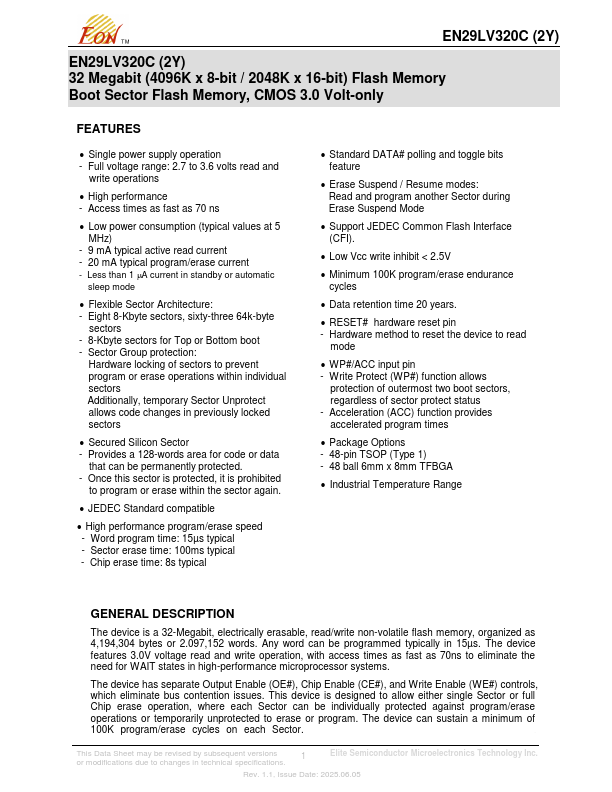

Overview: EN29LV320C (2Y) EN29LV320C (2Y) 32 Megabit (4096K x 8-bit / 2048K x 16-bit) Flash Memory Boot Sector Flash Memory, CMOS 3.

This datasheet includes multiple variants, all published together in a single manufacturer document.

General Description

The device is a 32-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 4,194,304 bytes or 2.097,

Key Features

  • Single power supply operation - Full voltage range: 2.7 to 3.6 volts read and write operations.
  • High performance - Access times as fast as 70 ns.
  • Low power consumption (typical values at 5 MHz) - 9 mA typical active read current - 20 mA typical program/erase current - Less than 1 A current in standby or automatic sleep mode.
  • Flexible Sector Architecture: - Eight 8-Kbyte sectors, sixty-three 64k-byte sectors - 8-Kbyte sectors for Top or Bottom boot - Sector Group protection:.
