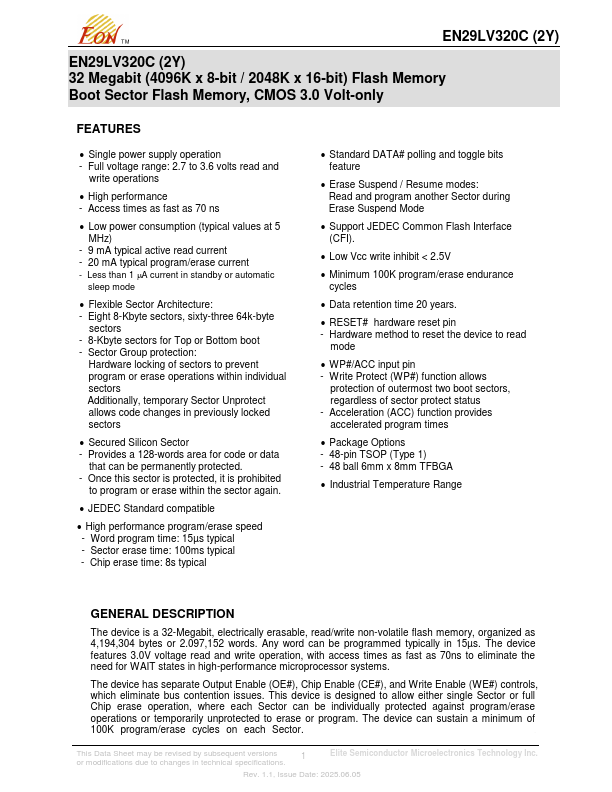

EN29LV320CB Overview
The device is a 32-Megabit, electrically erasable, read/write non-volatile flash memory, organized as 4,194,304 bytes or 2.097,152 words. Any word can be programmed typically in 15µs.
EN29LV320CB Key Features
- Single power supply operation
- Full voltage range: 2.7 to 3.6 volts read and
- High performance
- Access times as fast as 70 ns
- Low power consumption (typical values at 5 MHz)
- 9 mA typical active read current
- 20 mA typical program/erase current
- Less than 1 A current in standby or automatic
- Flexible Sector Architecture
- Eight 8-Kbyte sectors, sixty-three 64k-byte
