F50L1G41LB Overview

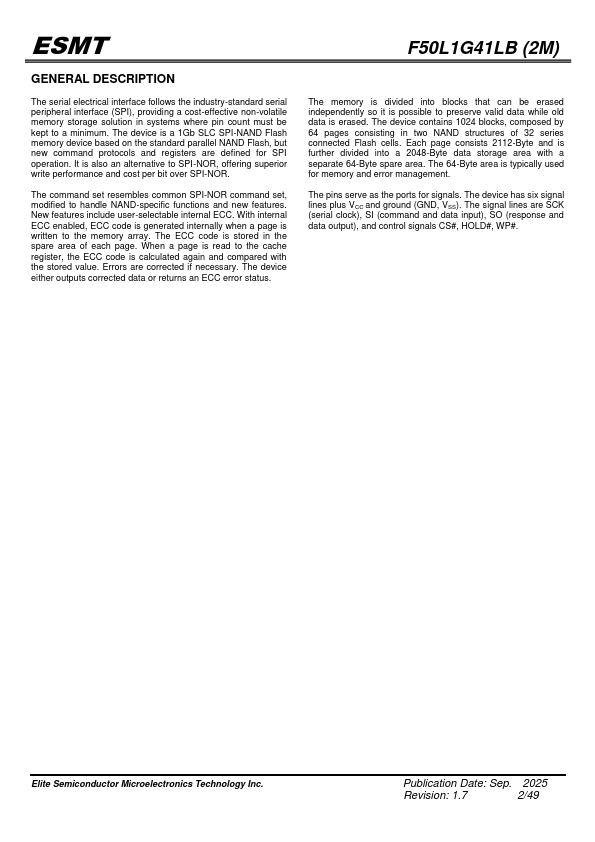

The serial electrical interface follows the industry-standard serial peripheral interface (SPI), providing a cost-effective non-volatile memory storage solution in systems where pin count must be kept to a minimum. The device is a 1Gb SLC SPI-NAND Flash memory device based on the standard parallel NAND Flash, but new mand protocols and registers are defined for SPI operation. It is also an alternative to SPI-NOR,...

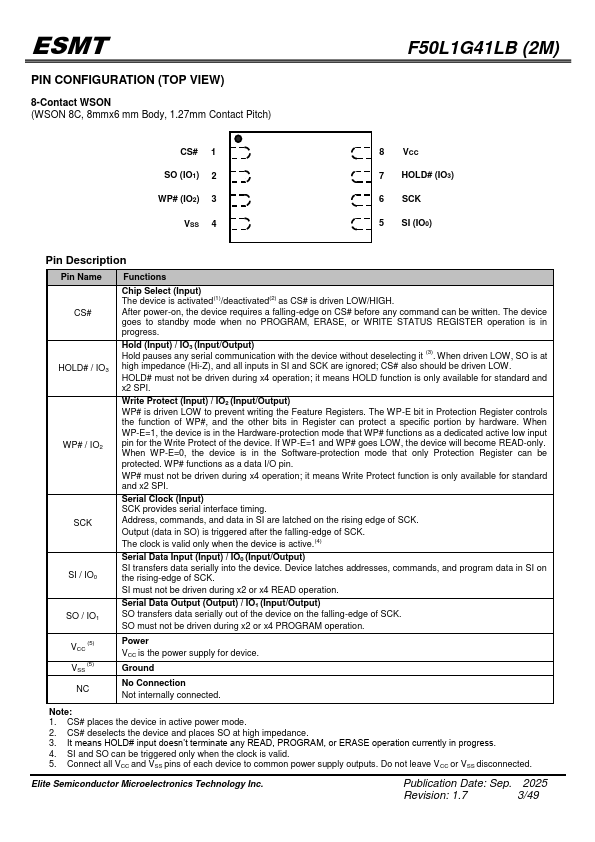

F50L1G41LB Key Features

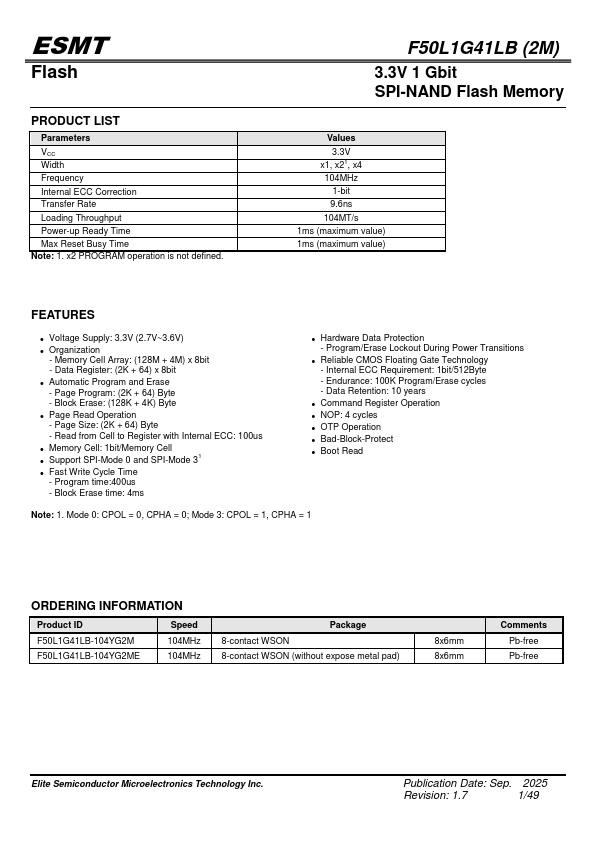

- Voltage Supply: 3.3V (2.7V~3.6V)
- Organization
- Memory Cell Array: (128M + 4M) x 8bit
- Data Register: (2K + 64) x 8bit
- Automatic Program and Erase
- Page Program: (2K + 64) Byte
- Block Erase: (128K + 4K) Byte
- Page Read Operation
- Page Size: (2K + 64) Byte
- Read from Cell to Register with Internal ECC: 100us
