F59D1G161MB Datasheet 1.8v Nand Flash Memory

Manufacturer: ESMT (Elite Semiconductor Microelectronics Technology)

Overview: ESMT Flash.

This datasheet includes multiple variants, all published together in a single manufacturer document.

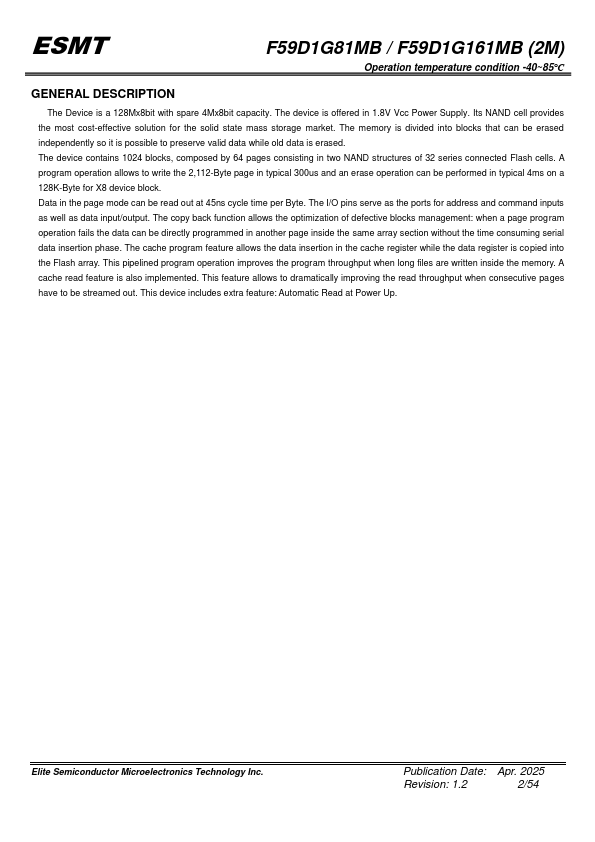

General Description

The Device is a 128Mx

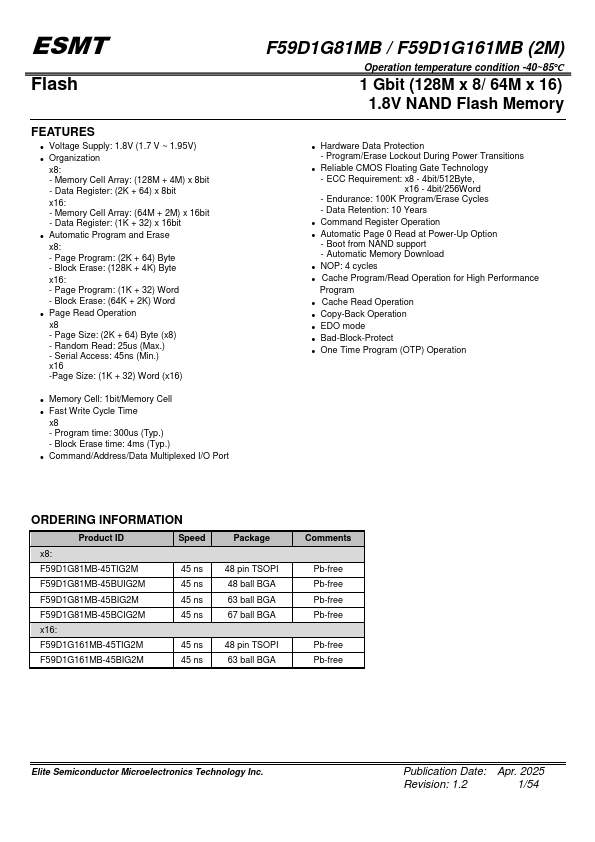

Key Features

  • Voltage Supply: 1.8V (1.7 V ~ 1.95V).
  • Organization x8: - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit x16: - Memory Cell Array: (64M + 2M) x 16bit - Data Register: (1K + 32) x 16bit.
  • Automatic Program and Erase x8: - Page Program: (2K + 64) Byte - Block Erase: (128K + 4K) Byte x16: - Page Program: (1K + 32) Word - Block Erase: (64K + 2K) Word.
  • Page Read Operation x8 - Page Size: (2K + 64) Byte (x8) - Random Read: 25us (Max. ) - Serial Access: 45ns (.
