M12L128324A-6BG2C - 1M x 32 Bit x 4 Banks Synchronous DRAM

Download the M12L128324A-6BG2C datasheet PDF. This datasheet also covers the M12L128324A-5BG2C variant, as both devices belong to the same 1m x 32 bit x 4 banks synchronous dram family and are provided as variant models within a single manufacturer datasheet.

General Description

The M12L128324A is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 32 bits.

Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle.

Key Features

  • JEDEC standard 3.3V power supply.
  • LVTTL compatible with multiplexed address.
  • Four banks operation.
  • MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave).
  • All inputs are sampled at the positive going edge of the system clock.
  • DQM for masking.
  • Auto & self refresh.
  • 64ms refresh period (4K cycle) M12L128324A (2C) 1M x 32 Bit x 4 Banks Synchronous DRAM.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M12L128324A-5BG2C-ESMT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
M12 12-KEYS PIANO 8/12 DEMO TUNES IC MOSDESIGN
M120 NON VOLATILE RANDOM ACCESS MEMORY SGS
M120-2 NON VOLATILE RANDOM ACCESS MEMORY SGS
M1200 Mercury TM1200 PCB-Mount Analog Encoders GSI Group
M1200A ON/OFF ONE SHOT LED FLASH IC MOSDESIGN

Other Datasheets by ESMT (Elite Semiconductor Microelectronics Technology)

Part Number Description
M12L128324A-6BG2E Synchronous DRAM
M12L128324A-6TG2C 1M x 32 Bit x 4 Banks Synchronous DRAM
M12L128324A-5BG2C 1M x 32 Bit x 4 Banks Synchronous DRAM
M12L128324A-5BG2E Synchronous DRAM
M12L128324A-5TG2C 1M x 32 Bit x 4 Banks Synchronous DRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

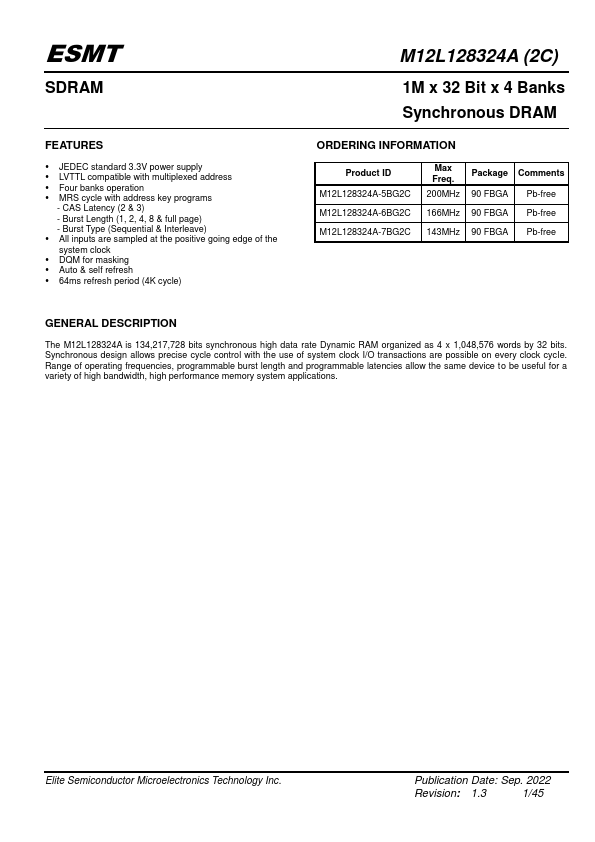

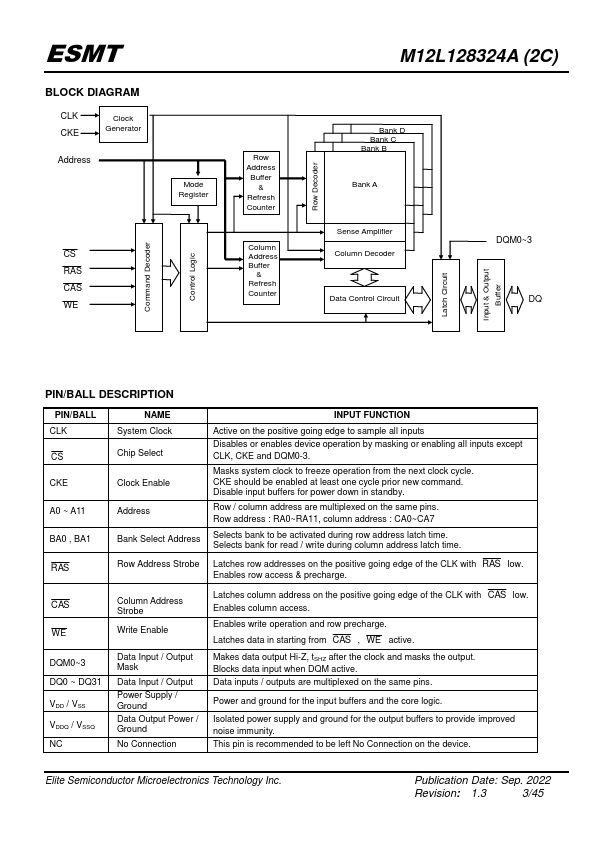

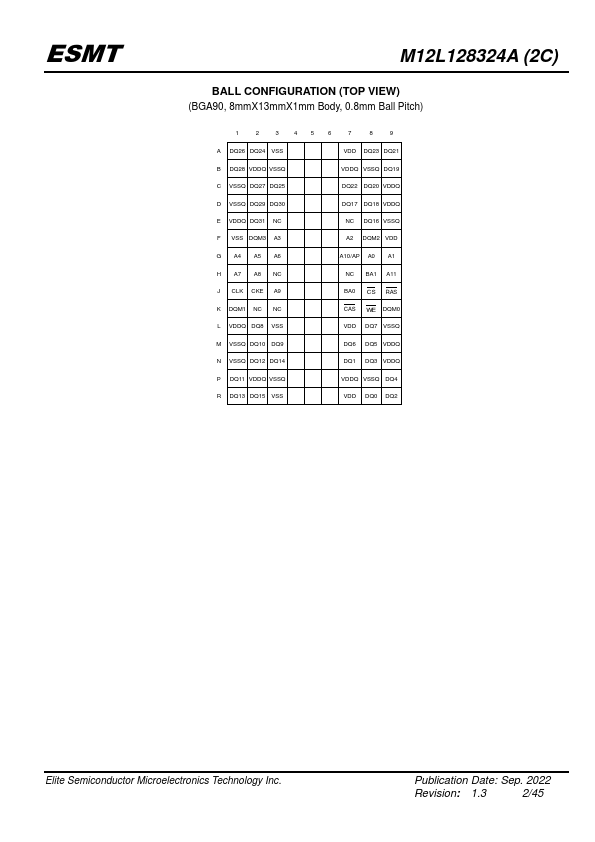

ESMT SDRAM FEATURES  JEDEC standard 3.3V power supply  LVTTL compatible with multiplexed address  Four banks operation  MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave)  All inputs are sampled at the positive going edge of the system clock  DQM for masking  Auto & self refresh  64ms refresh period (4K cycle) M12L128324A (2C) 1M x 32 Bit x 4 Banks Synchronous DRAM ORDERING INFORMATION Product ID M12L128324A-5BG2C M12L128324A-6BG2C M12L128324A-7BG2C Max Freq. 200MHz Package 90 FBGA Comments Pb-free 166MHz 90 FBGA Pb-free 143MHz 90 FBGA Pb-free GENERAL DESCRIPTION The M12L128324A is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 32 bits.
