M12L2561616A-5TG2T
M12L2561616A-5TG2T is 4M x 16 Bit x 4 Banks Synchronous DRAM manufactured by Elite Semiconductor Microelectronics Technology.
- Part of the M12L2561616A comparator family.
- Part of the M12L2561616A comparator family.
ESMT
SDRAM
Features
- JEDEC standard 3.3V power supply
- LVTTL patible with multiplexed address
- Four banks operation
- MRS cycle with address key programs
- CAS Latency (2 & 3)
- Burst Length (1, 2, 4, 8 & full page)
- Burst Type (Sequential & Interleave)
- All inputs are sampled at the positive going edge of the system clock
- Burst Read single write operation
- DQM for masking
- Auto & self refresh
- 64ms refresh period (8K cycle)
- All Pb-free products are Ro HS-pliant

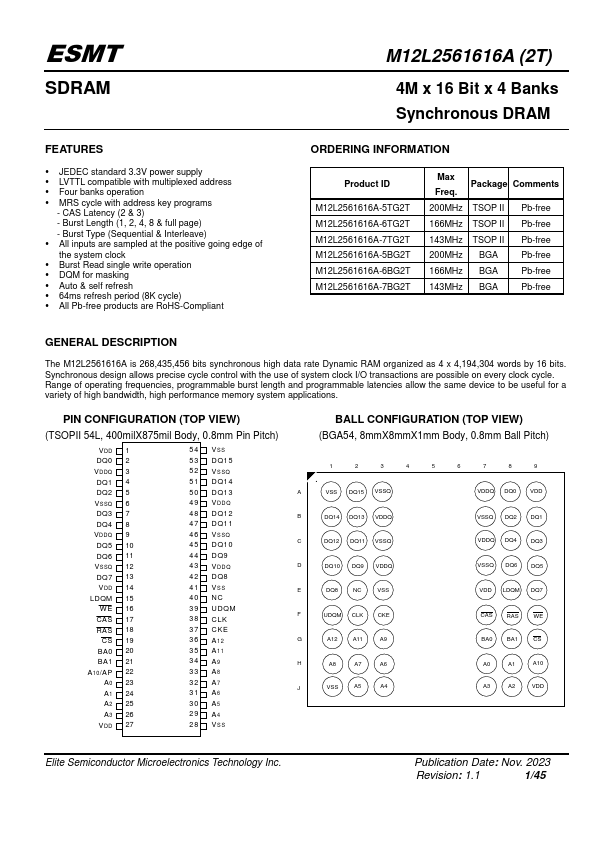

M12L2561616A (2T)
4M x 16 Bit x 4 Banks Synchronous DRAM
ORDERING INFORMATION
Product ID
M12L2561616A-5TG2T M12L2561616A-6TG2T M12L2561616A-7TG2T M12L2561616A-5BG2T M12L2561616A-6BG2T M12L2561616A-7BG2T
Max Package ments
Freq.
200MHz TSOP II Pb-free
166MHz TSOP II Pb-free
143MHz TSOP II Pb-free
200MHz BGA
Pb-free
166MHz...
