M14D5121632A-2.5BBG2M
M14D5121632A-2.5BBG2M is 8M x 16 Bit x 4 Banks DDR II SDRAM manufactured by Elite Semiconductor Microelectronics Technology.
- Part of the M14D5121632A comparator family.
- Part of the M14D5121632A comparator family.
ESMT
M14D5121632A (2M)
DDR II SDRAM
8M x 16 Bit x 4 Banks DDR II SDRAM

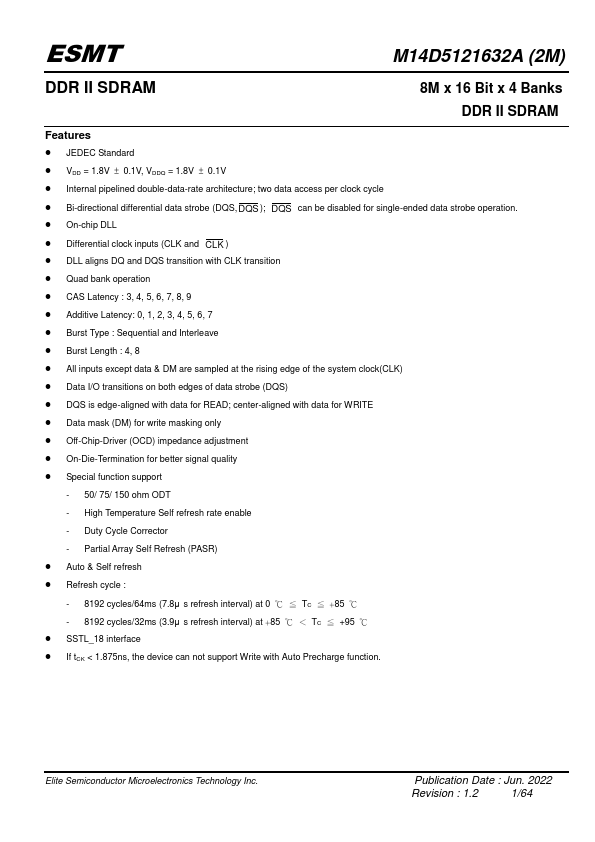

Features
- JEDEC Standard
- VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V
- Internal pipelined double-data-rate architecture; two data access per clock cycle
- Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation.
- On-chip DLL
- Differential clock inputs (CLK and CLK )
- DLL aligns DQ and DQS transition with CLK transition
- Quad bank operation
- CAS Latency : 3, 4, 5, 6, 7, 8, 9
- Additive Latency: 0, 1, 2, 3, 4, 5, 6, 7
- Burst Type : Sequential and Interleave
- Burst Length : 4, 8
- All inputs except data & DM are sampled at the rising edge of the system...
