M14D5121632A-2.5BG2S Overview
ESMT M14D5121632A (2S) DDR II SDRAM 8M x 16 Bit x 4 Banks DDR II SDRAM.

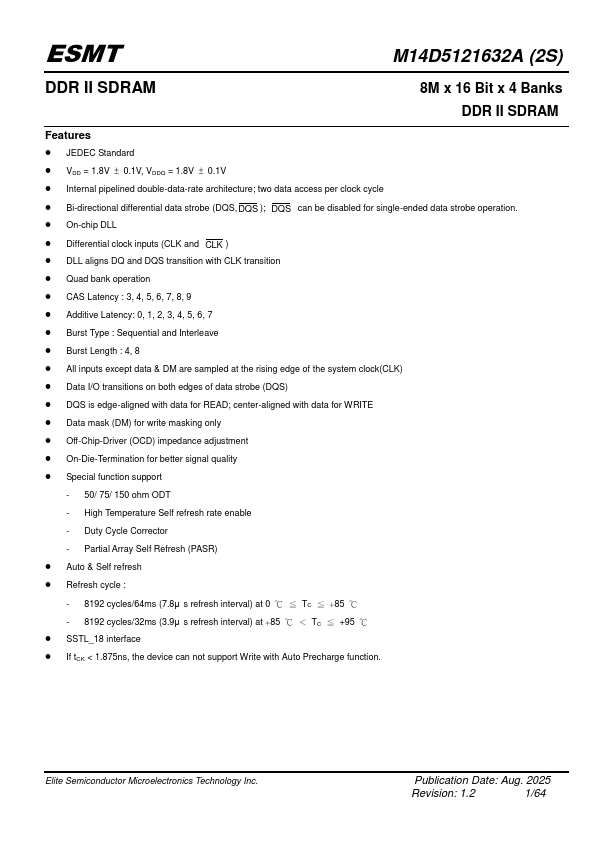

M14D5121632A-2.5BG2S Key Features
- JEDEC Standard
- VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V
- Internal pipelined double-data-rate architecture; two data access per clock cycle
- Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation
- On-chip DLL
- Differential clock inputs (CLK and CLK )
- DLL aligns DQ and DQS transition with CLK transition
- Quad bank operation
- CAS Latency : 3, 4, 5, 6, 7, 8, 9
- Additive Latency: 0, 1, 2, 3, 4, 5, 6, 7
