M14D5121632A-2.5BBG2S Datasheet 8m X 16 Bit X 4 Banks Ddr Ii Sdram

Manufacturer: ESMT (Elite Semiconductor Microelectronics Technology)

Overview: ESMT M14D5121632A (2S) DDR II SDRAM 8M x 16 Bit x 4 Banks DDR II.

This datasheet includes multiple variants, all published together in a single manufacturer document.

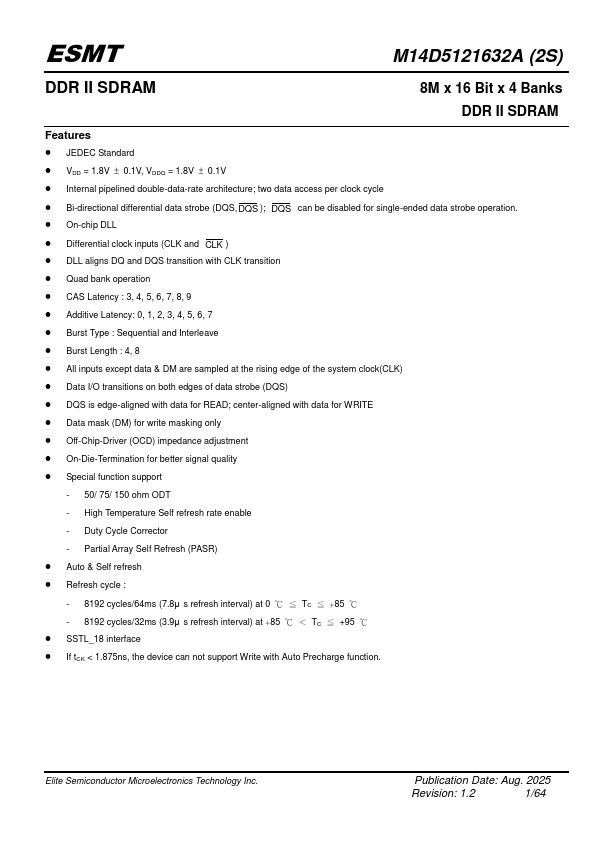

Key Features

  • JEDEC Standard.
  • VDD = 1.8V ± 0.1V, VDDQ = 1.8V ± 0.1V.
  • Internal pipelined double-data-rate architecture; two data access per clock cycle.
  • Bi-directional differential data strobe (DQS, DQS ); DQS can be disabled for single-ended data strobe operation.
  • On-chip DLL.
  • Differential clock inputs (CLK and CLK ).
  • DLL aligns DQ and DQS transition with CLK transition.
  • Quad bank operation.
  • CAS Latency : 3, 4, 5, 6, 7, 8, 9.
  • Additive Latency: 0, 1, 2, 3, 4,.
