M15F1G1664A-DEBG2CS
M15F1G1664A-DEBG2CS is 8M x 16 Bit x 8 Banks DDR3 SDRAM manufactured by Elite Semiconductor Microelectronics Technology.
- Part of the M15F1G1664A comparator family.
- Part of the M15F1G1664A comparator family.

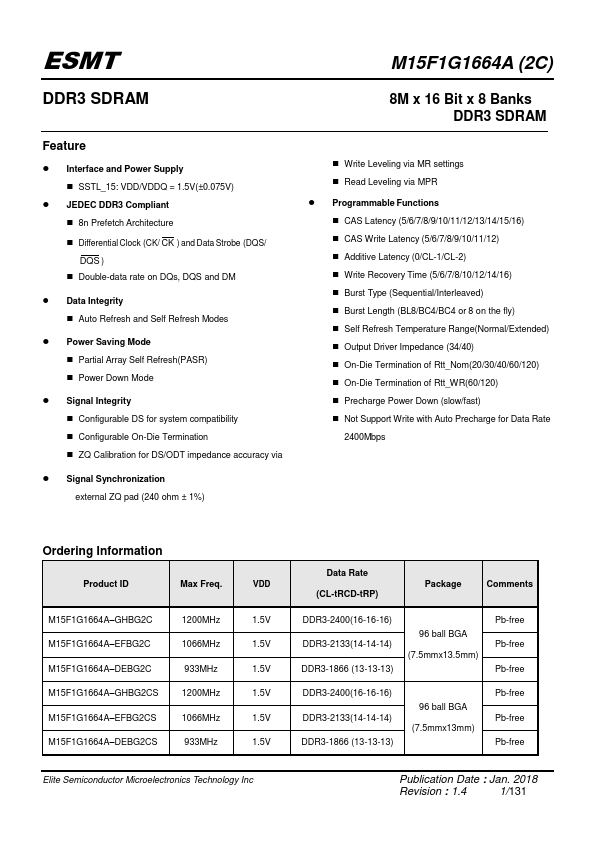

ESMT
M15F1G1664A (2C)
DDR3 SDRAM
Feature
- Interface and Power Supply
- SSTL_15: VDD/VDDQ = 1.5V(±0.075V)
- JEDEC DDR3 pliant
- 8n Prefetch Architecture
- Differential Clock (CK/ CK ) and Data Strobe (DQS/ DQS )
- Double-data rate on DQs, DQS and DM
- Data Integrity
- Auto Refresh and Self Refresh Modes
- Power Saving Mode
- Partial Array Self Refresh(PASR)
- Power Down Mode
- Signal Integrity
- Configurable DS for system patibility
- Configurable On-Die Termination
- ZQ Calibration for DS/ODT impedance accuracy via
- Signal Synchronization external ZQ pad (240 ohm ± 1%)
8M x 16 Bit x 8 Banks DDR3 SDRAM
- Write Leveling via MR settings
- Read Leveling via MPR
- Programmable...
