M15F1G1664A-DEBG2S
M15F1G1664A-DEBG2S is 8M x 16 Bit x 8 Banks DDR3 SDRAM manufactured by Elite Semiconductor Microelectronics Technology.
- Part of the M15F1G1664A-GHBG2S comparator family.
- Part of the M15F1G1664A-GHBG2S comparator family.
ESMT
DDR3 SDRAM

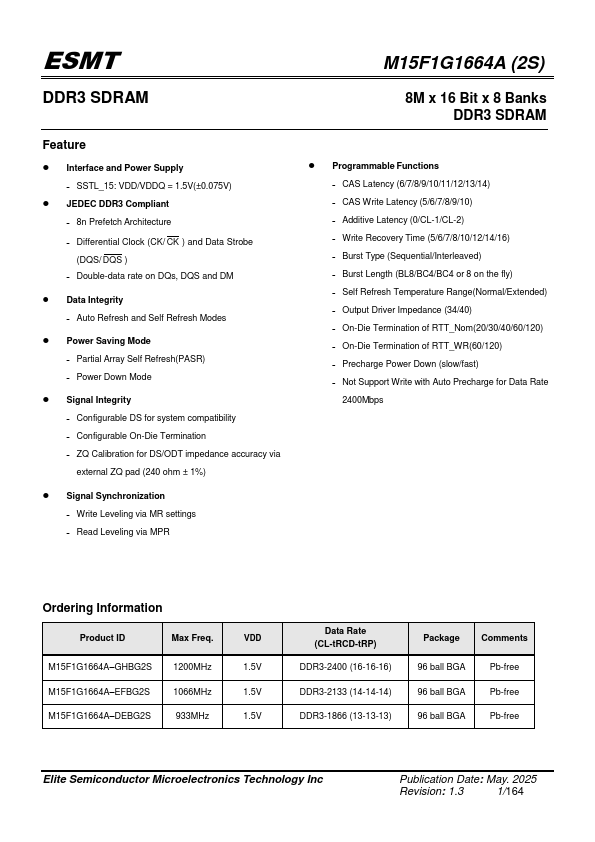

Feature
- Interface and Power Supply ˗ SSTL_15: VDD/VDDQ = 1.5V(±0.075V)
- JEDEC DDR3 pliant ˗ 8n Prefetch Architecture ˗ Differential Clock (CK/ CK ) and Data Strobe (DQS/ DQS ) ˗ Double-data rate on DQs, DQS and DM
- Data Integrity ˗ Auto Refresh and Self Refresh Modes
- Power Saving Mode ˗ Partial Array Self Refresh(PASR) ˗ Power Down Mode
- Signal Integrity ˗ Configurable DS for system patibility ˗ Configurable On-Die Termination ˗ ZQ Calibration for DS/ODT impedance accuracy via external ZQ pad (240 ohm ± 1%)
- Signal Synchronization ˗ Write Leveling via MR settings ˗ Read Leveling via MPR
M15F1G1664A (2S)
8M x 16 Bit x 8 Banks DDR3 SDRAM
- Programmable...
