M15T2G8256A-BDBG2R datasheet by ESMT (Elite Semiconductor Microelectronics Technology).
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | M15T2G8256A-BDBG2R |
|---|---|
| Datasheet | M15T2G8256A-BDBG2R M15T2G8256A-EFBG2R Datasheet (PDF) |
| File Size | 7.37 MB |
| Manufacturer | ESMT (Elite Semiconductor Microelectronics Technology) |

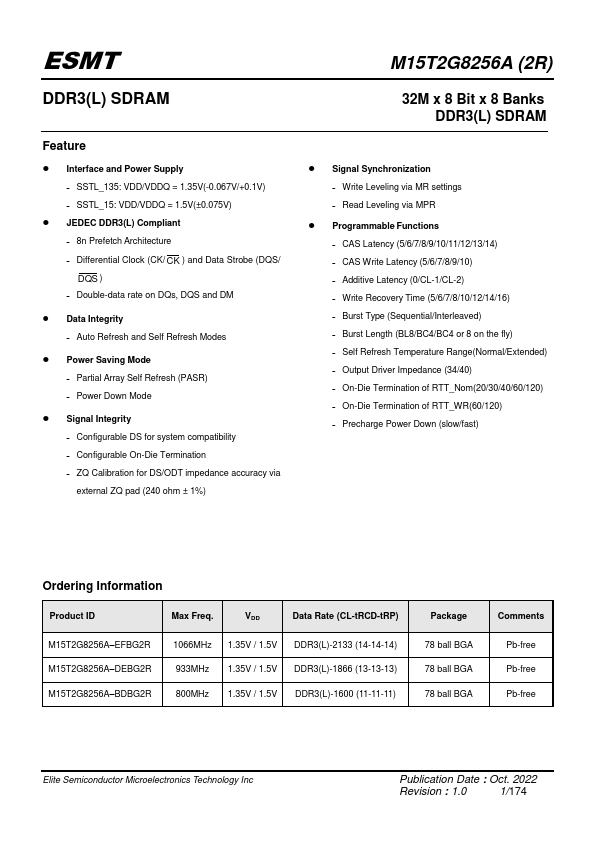

| Description | 32M x 8 Bit x 8 Banks DDR3 SDRAM |
|
|

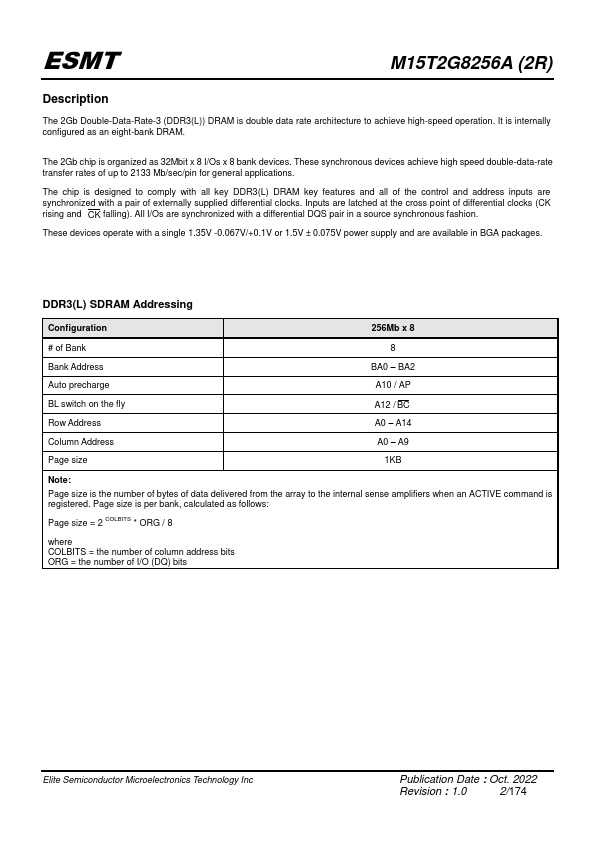

The 2Gb Double-Data-Rate-3 (DDR3(L)) DRAM is double data rate architecture to achieve high-speed operation. It is internally configured as an eight-bank DRAM. The 2Gb chip is organized as 32Mbit x 8 I/Os x 8 bank devices.
