• Part: M15T2G8256A-DEBG2R
  • Description: 32M x 8 Bit x 8 Banks DDR3 SDRAM
  • Manufacturer: Elite Semiconductor Microelectronics Technology
  • Size: 7.37 MB
Download M15T2G8256A-DEBG2R Datasheet PDF
Elite Semiconductor Microelectronics Technology
M15T2G8256A-DEBG2R
M15T2G8256A-DEBG2R is 32M x 8 Bit x 8 Banks DDR3 SDRAM manufactured by Elite Semiconductor Microelectronics Technology.
- Part of the M15T2G8256A-EFBG2R comparator family.

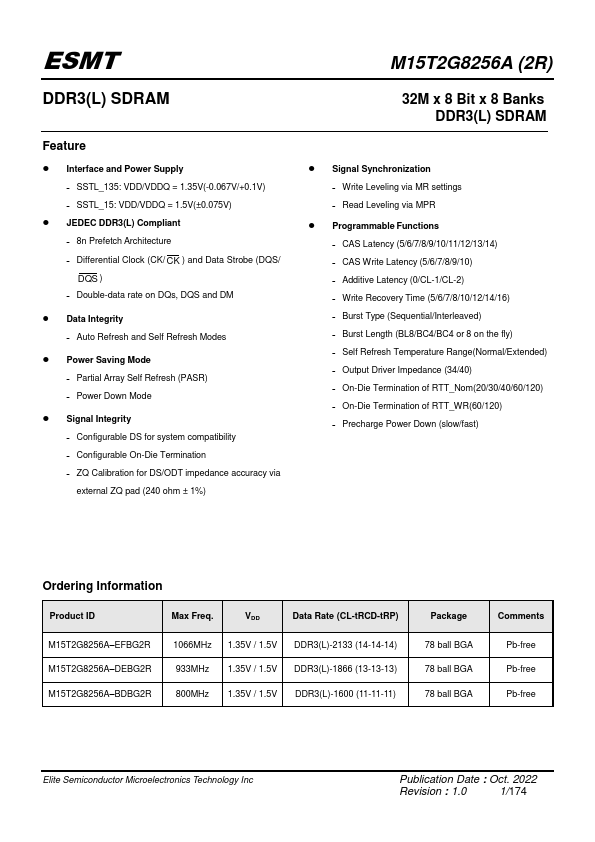

ESMT DDR3(L) SDRAM Feature - Interface and Power Supply ˗ SSTL_135: VDD/VDDQ = 1.35V(-0.067V/+0.1V) ˗ SSTL_15: VDD/VDDQ = 1.5V(±0.075V) - JEDEC DDR3(L) pliant ˗ 8n Prefetch Architecture ˗ Differential Clock (CK/ CK ) and Data Strobe (DQS/ DQS ) ˗ Double-data rate on DQs, DQS and DM - Data Integrity ˗ Auto Refresh and Self Refresh Modes - Power Saving Mode ˗ Partial Array Self Refresh (PASR) ˗ Power Down Mode - Signal Integrity ˗ Configurable DS for system patibility ˗ Configurable On-Die Termination ˗ ZQ Calibration for DS/ODT impedance accuracy via external ZQ pad (240 ohm ± 1%) M15T2G8256A (2R) 32M x 8 Bit x 8 Banks DDR3(L) SDRAM - Signal Synchronization ˗ Write Leveling via MR...

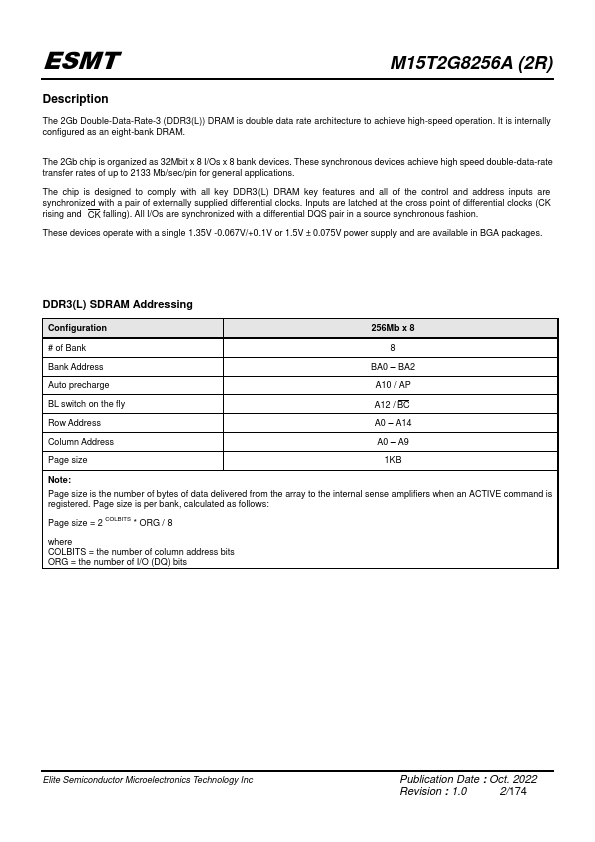

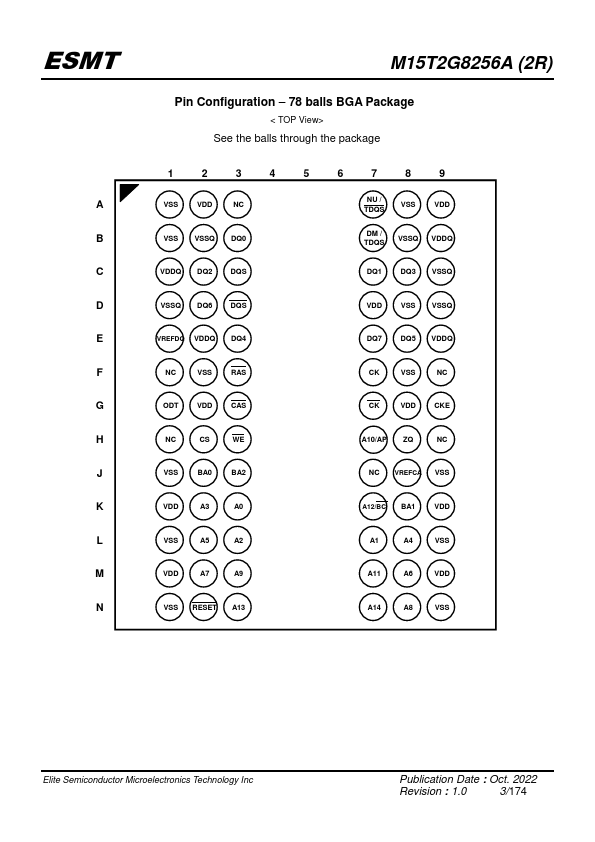

M15T2G8256A-DEBG2R datasheet preview
