M53D64164A-4.5BG2C - 1M x16 Bit x 4 Banks Mobile DDR SDRAM

Download the M53D64164A-4.5BG2C datasheet PDF. This datasheet also covers the M53D64164A variant, as both devices belong to the same 1m x16 bit x 4 banks mobile ddr sdram family and are provided as variant models within a single manufacturer datasheet.

General Description

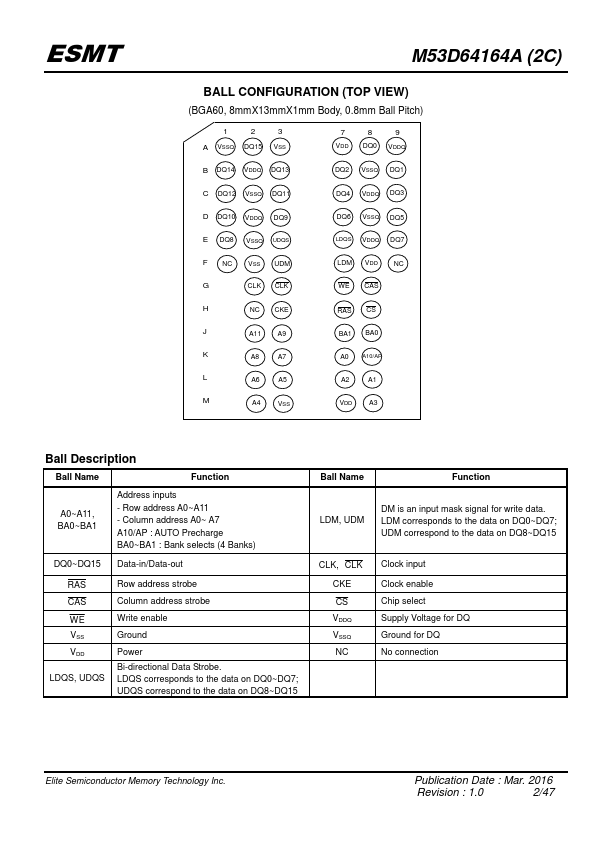

Ball Name Function A0~A11, BA0~BA1 Address inputs - Row address A0~A11 - Column address A0~ A7 A10/AP : AUTO Precharge BA0~BA1 : Bank selects (4 Banks) DQ0~DQ15 Data-in/Data-out RAS CAS WE VSS VDD LDQS, UDQS Row address strobe Column address strobe Write enable Ground Power Bi-directional Dat

Key Features

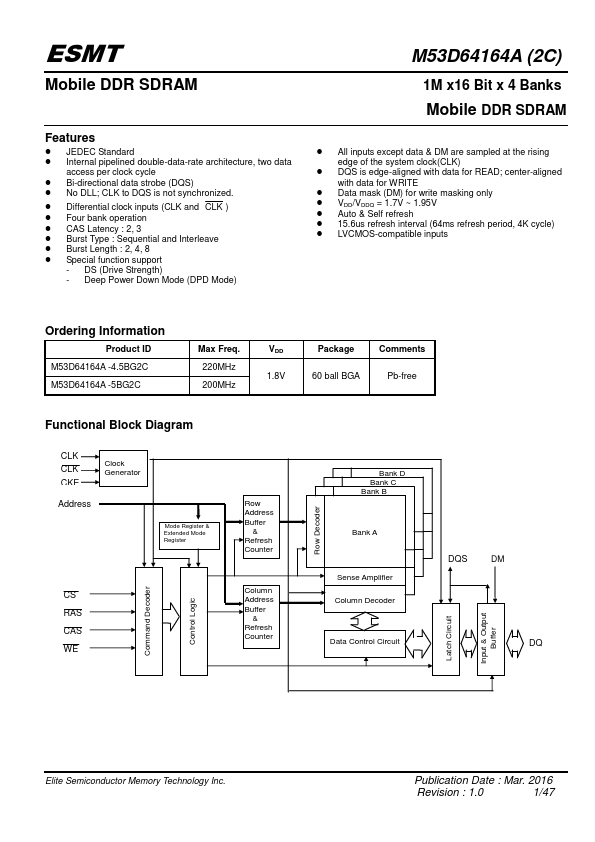

  • JEDEC Standard Internal pipelined double-data-rate architecture, two data access per clock cycle Bi-directional data strobe (DQS) No DLL; CLK to DQS is not synchronized. Differential clock inputs (CLK and CLK ) Four bank operation CAS Latency : 2, 3 Burst Type : Sequential and Interleave Burst Length : 2, 4, 8 Special function support - DS (Drive Strength) - Deep Power Down Mode (DPD Mode) M53D64164A (2C) 1M x16 Bit x 4 Banks Mobile DDR SDRAM All inputs except data & DM are sampled at the risin.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M53D64164A-ESMT.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
M53 Triple-Balanced Mixer Tyco Electronics
M5300 JIGH RELIABILITY CURRENT REGULATOR DIODES Microsemi
M5301 JIGH RELIABILITY CURRENT REGULATOR DIODES Microsemi
M5302 JIGH RELIABILITY CURRENT REGULATOR DIODES Microsemi
M5303 JIGH RELIABILITY CURRENT REGULATOR DIODES Microsemi

Other Datasheets by ESMT (Elite Semiconductor Microelectronics Technology)

Part Number Description
M53D64164A-5BG2C 1M x16 Bit x 4 Banks Mobile DDR SDRAM
M53D64164A 1M x16 Bit x 4 Banks Mobile DDR SDRAM
M53D128168A Mobile DDR SDRAM
M53D128324A Mobile DDR SDRAM
M53D1G1664A Mobile DDR SDRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

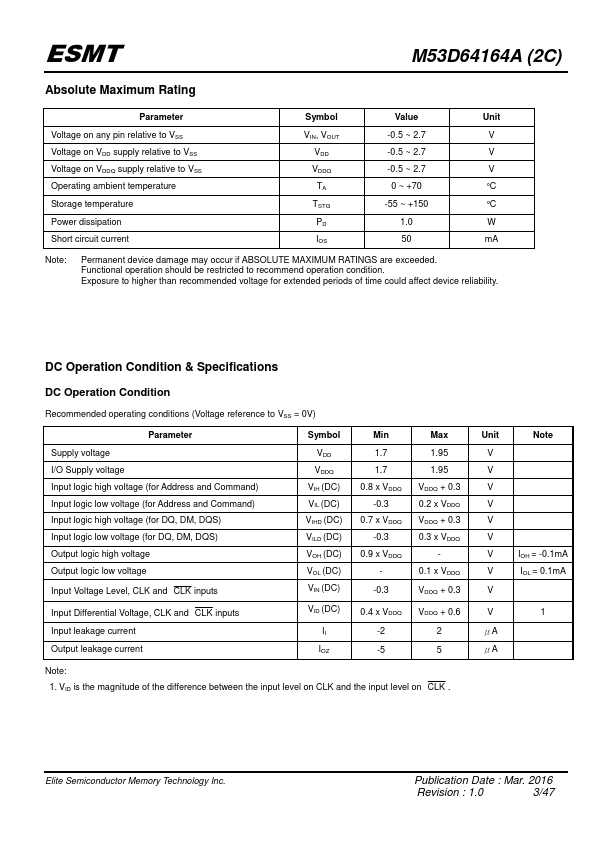

ESMT Mobile DDR SDRAM Features JEDEC Standard Internal pipelined double-data-rate architecture, two data access per clock cycle Bi-directional data strobe (DQS) No DLL; CLK to DQS is not synchronized. Differential clock inputs (CLK and CLK ) Four bank operation CAS Latency : 2, 3 Burst Type : Sequential and Interleave Burst Length : 2, 4, 8 Special function support - DS (Drive Strength) - Deep Power Down Mode (DPD Mode) M53D64164A (2C) 1M x16 Bit x 4 Banks Mobile DDR SDRAM All inputs except data & DM are sampled at the rising edge of the system clock(CLK) DQS is edge-aligned with data for READ; center-aligned with data for WRITE Data mask (DM) for write masking only VDD/VDDQ = 1.7V ~ 1.95V Auto & Self refresh 15.
