ES9840 Datasheet | ESS Technology

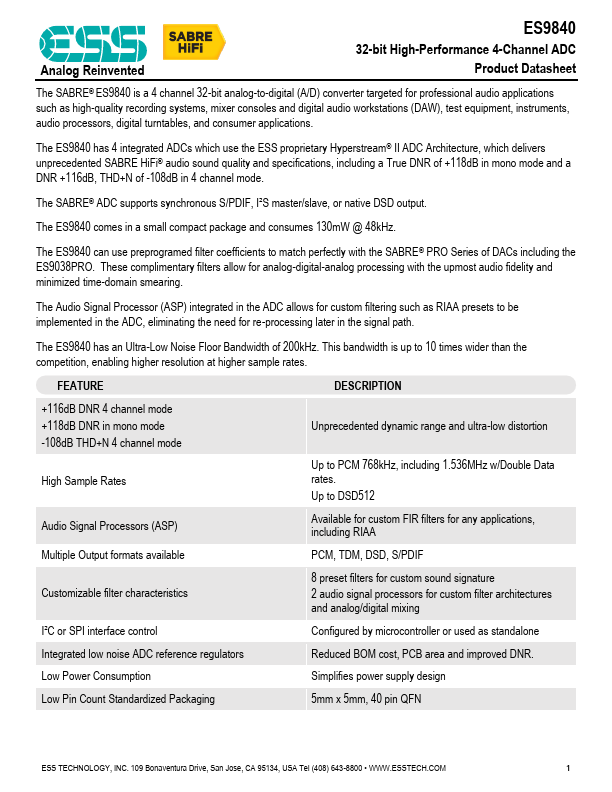

FEATURE DESCRIPTION +116d B DNR 4 channel mode +118d B DNR in mono mode -108d B THD+N 4 channel mode Unprecedented dynamic range and ultra-low distortion High Sample Rates Up to PCM 768k Hz, including 1.536MHz w/Double Data rates. Up to DSD512 Audio Signal Processors (ASP) Available for custom FIR filters for any applications, including RIAA Multiple Output formats available PCM, TDM, DSD, S/PDIF Customizable filter characteristics 8 preset filters for custom sound signature 2 audio signal processors for custom filter architectures and analog/digital mixing I²C or SPI interface control Configured by microcontroller or used as standalone Integrated low noise ADC reference regulators Reduced BOM cost, PCB area and improved DNR. Low Power Consumption Simplifies power supply design Low Pin Count Standardized Packaging 5mm x 5mm, 40 pin QFN ESS TECHNOLOGY, INC. 109 Bonaventura Drive, San Jose, CA 95134, USA Tel (408) 643-8800 - .ESSTECH. VERSION 0.5.1 Table of Contents ES9840 Product Datasheet List of Figures 5 List of Tables 6 Functional Block Diagram...
