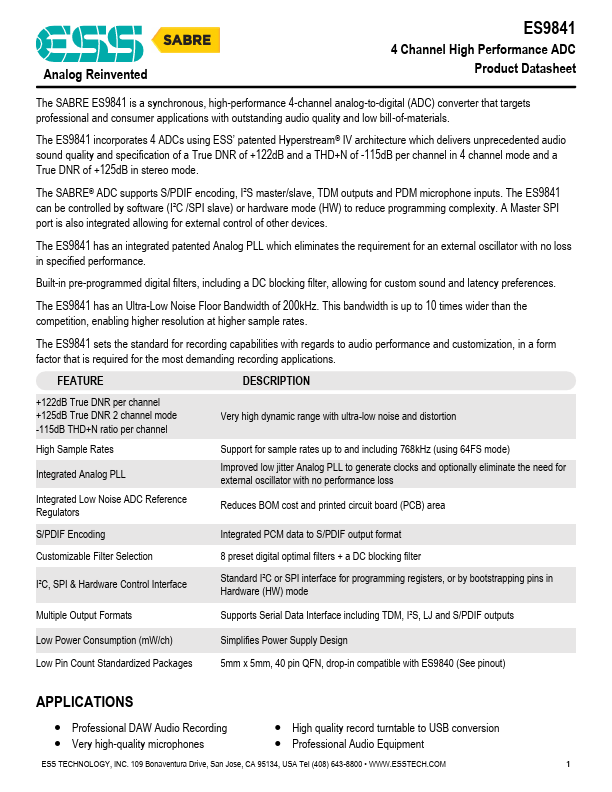

ES9841 Datasheet | ESS Technology

FEATURE DESCRIPTION +122d B True DNR per channel +125d B True DNR 2 channel mode -115d B THD+N ratio per channel High Sample Rates Integrated Analog PLL Integrated Low Noise ADC Reference Regulators Very high dynamic range with ultra-low noise and distortion Support for sample rates up to and including 768k Hz (using 64FS mode) Improved low jitter Analog PLL to generate clocks and optionally eliminate the need for external oscillator with no performance loss Reduces BOM cost and printed circuit board (PCB) area S/PDIF Encoding Integrated PCM data to S/PDIF output format Customizable Filter Selection 8 preset digital optimal filters + a DC blocking filter I²C, SPI & Hardware Control Interface Standard I²C or SPI interface for programming registers, or by bootstrapping pins in Hardware (HW) mode Multiple Output Formats Supports Serial Data Interface including TDM, I²S, LJ and S/PDIF outputs Low Power Consumption (m W/ch) Simplifies Power Supply Design Low Pin Count Standardized Packages 5mm x 5mm, 40 pin QFN, drop-in patible with ES9840 (See pinout) APPLICATIONS - Professional DAW Audio Recording - Very high-quality microphones - High quality record turntable to USB conversion - Professional Audio Equipment ESS TECHNOLOGY, INC. 109 Bonaventura Drive, San Jose, CA 95134, USA Tel (408) 643-8800 - .ESSTECH. VERSION 0.4 ES9841 Product Datasheet Table of Contents APPLICATIONS...
