CH540

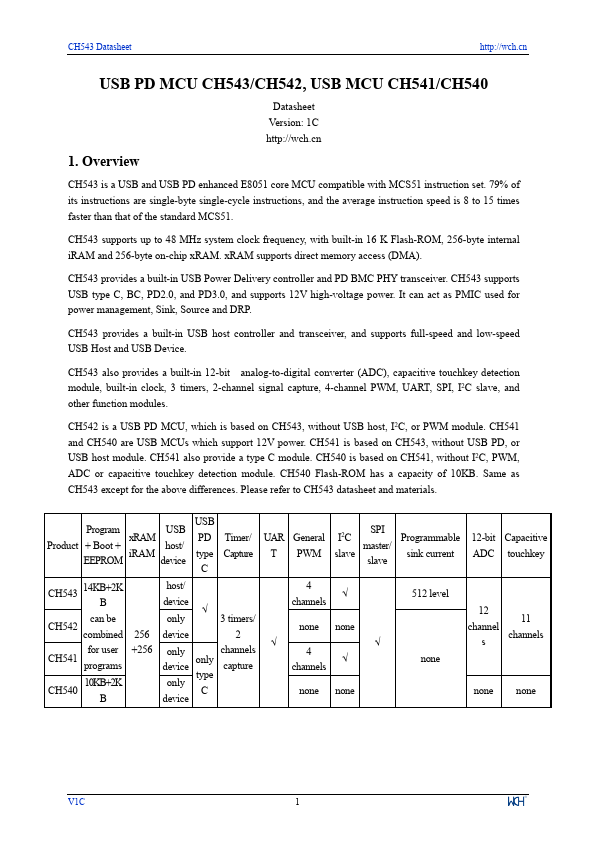

Overview
CH543 is a USB and USB PD enhanced E8051 core MCU patible with MCS51 instruction set. 79% of its instructions are single-byte single-cycle instructions, and the average instruction speed is 8 to 15 times faster than that of the standard MCS51.
CH543 supports up to 48 MHz system clock frequency, with built-in 16 K Flash-ROM, 256-byte internal i RAM and 256-byte on-chip x RAM. x RAM supports direct memory access (DMA).
CH543 provides a built-in USB Power Delivery controller and PD BMC PHY transceiver. CH543 supports USB type C, BC, PD2.0, and PD3.0, and supports 12V high-voltage power. It can act as PMIC used for power management, Sink, Source and DRP.
CH543 provides a built-in USB host controller and transceiver, and supports full-speed and low-speed USB Host and USB Device.
CH543 also provides a built-in 12-bit analog-to-digital converter (ADC), capacitive touchkey detection module, built-in clock, 3 timers, 2-channel signal capture, 4-channel PWM, UART, SPI, I2C slave, and...
