CH542 - USB PD MCU

Product Overview

Part number	CH542
Manufacturer	ETC
File Size	919.83 KB
Description	USB PD MCU
Datasheet	CH542 Datasheet
Note	This datasheet PDF includes multiple part numbers: CH542, CH541. Please refer to the document for exact specifications by model.

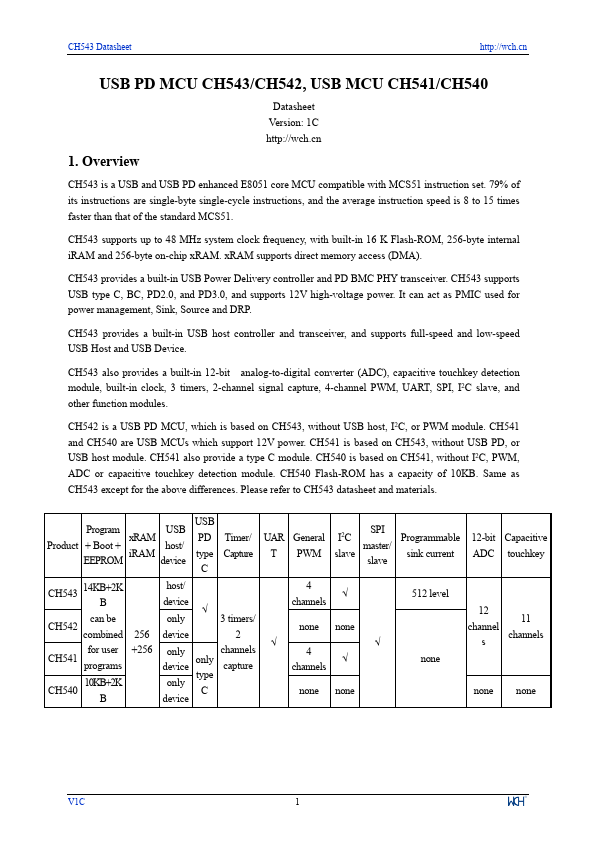

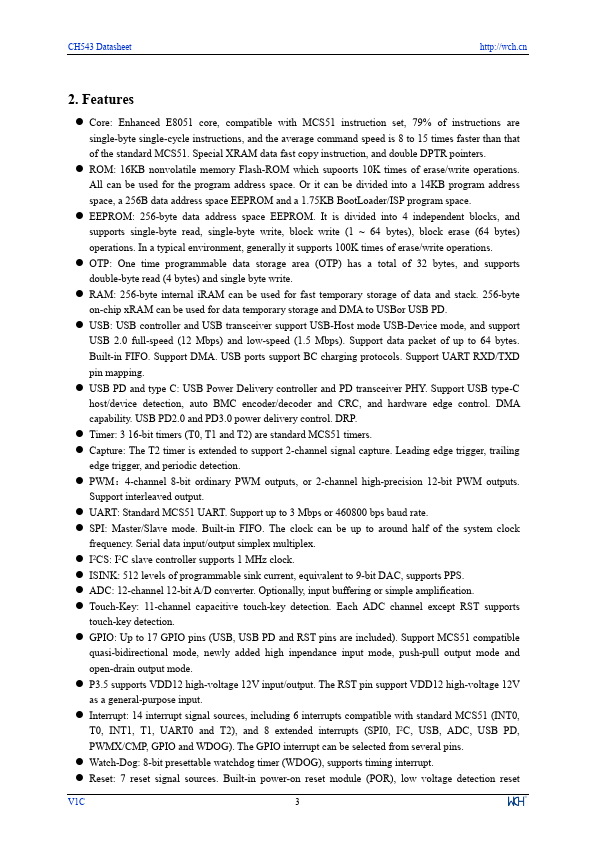

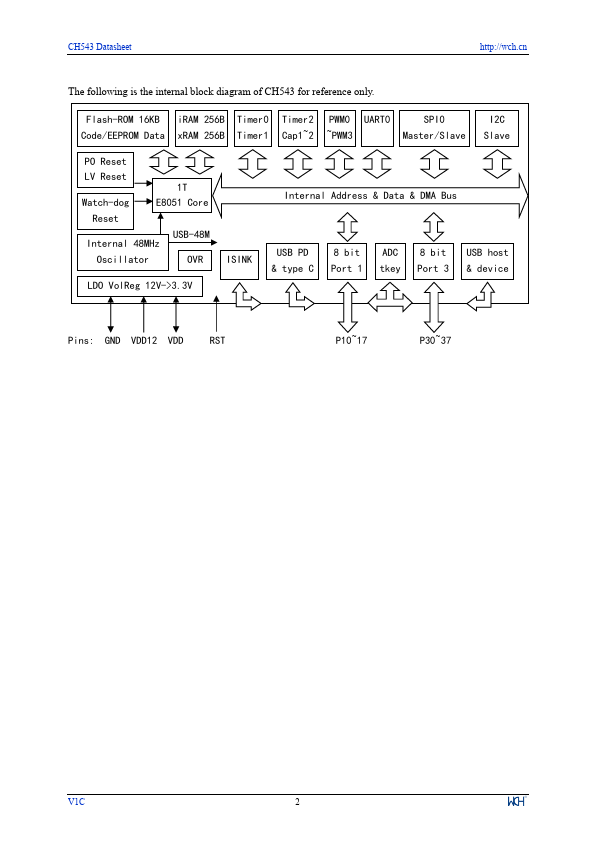

Additional preview pages of the CH542 datasheet.

l Core: Enhanced E8051 core, compatible with MCS51 instruction set, 79% of instructions are single-byte single-cycle instructions, and the average command speed is 8 to 15 times faster than that of the standard MCS51. Special XRAM data fast copy instruction, and double DPTR pointers. l ROM: 16KB nonvolatile memory Flash-ROM which supoorts 10K times of erase/write operations. All can be used for the program address space. Or it can be divided into a 14KB program address space, a 256B data address.
