CH541 - USB MCU

Features

  • l Core: Enhanced E8051 core, compatible with MCS51 instruction set, 79% of instructions are single-byte single-cycle instructions, and the average command speed is 8 to 15 times faster than that of the standard MCS51. Special XRAM data fast copy instruction, and double DPTR pointers. l ROM: 16KB nonvolatile memory Flash-ROM which supoorts 10K times of erase/write operations. All can be used for the program address space. Or it can be divided into a 14KB program address space, a 256B data address.

📥 Download Datasheet

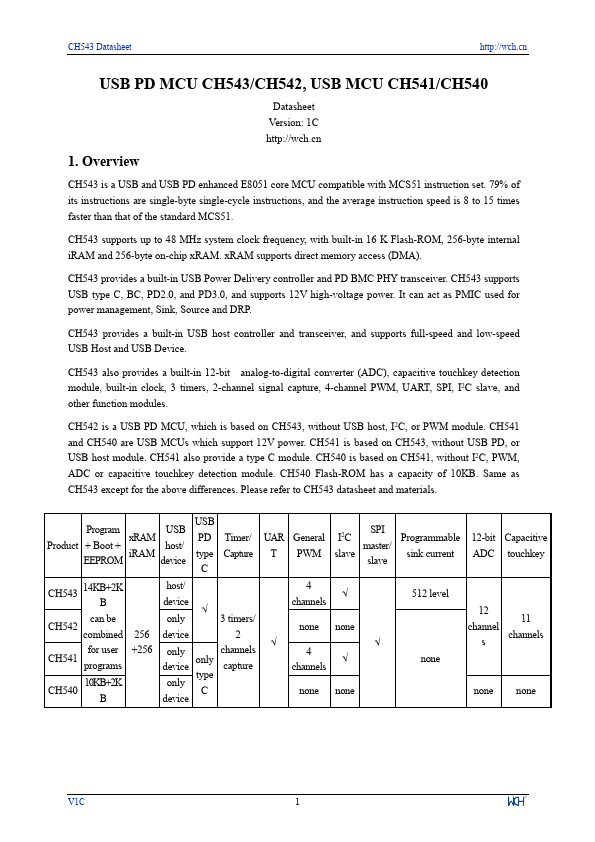

Datasheet preview – CH541

Datasheet Details

Part number CH541
Manufacturer Unknown Manufacturer
File Size 919.83 KB
Description USB MCU
Datasheet download datasheet CH541 Datasheet

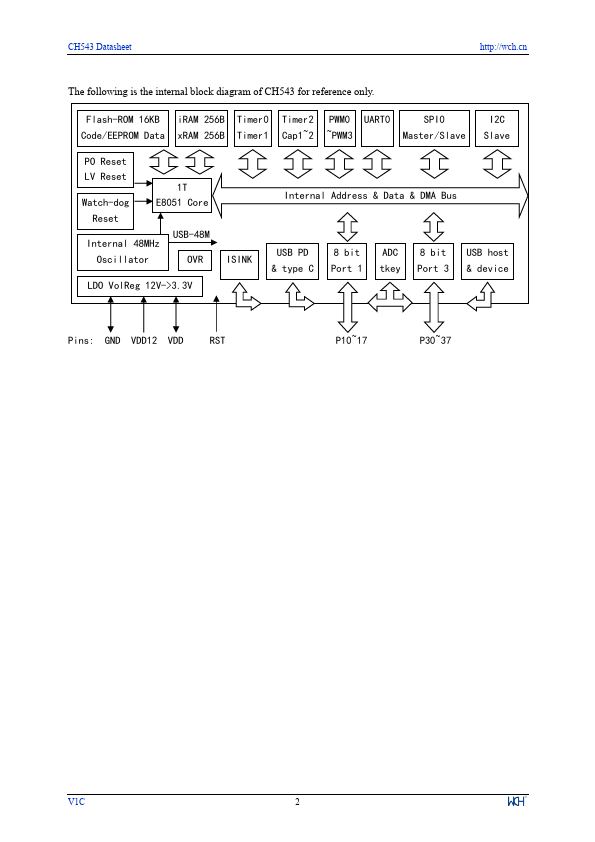

Additional preview pages of the CH541 datasheet.

📁 Similar Datasheet

  • CH548TSPT - SCHOTTKY BARRIER DIODE (Chenmko Enterprise)
  • CH548WPT - SCHOTTKY BARRIER DIODE (Chenmko Enterprise)
  • CH5001A - CMOS COLOR DIGITAL VIDEO CAMERA (Chrontel)
  • CH5008 - Octal E1 Short Haul Line Interface Unit (Chip)
  • CH500H-40PT - SCHOTTKY BARRIER DIODE (Chenmko Enterprise)
  • CH501G-40PT - SCHOTTKY BARRIER DIODE (Chenmko Enterprise)
  • CH501H-40PT - SCHOTTKY BARRIER DIODE (Chenmko Enterprise)
  • CH501S-40PT - SCHOTTKY BARRIER DIODE (Chenmko Enterprise)
  • CH502 - gear tooth sensor (Cosemitech)
  • CH5101A - CMOS Monochrome Digital Video Camera (Chrontel)
Other Datasheets by ETC
  • CH540 - USB MCU
  • CH542 - USB PD MCU
  • CH543 - USB PD MCU
  • CH551 - 8 Enhanced USB single-chip
  • CH552 - 8 Enhanced USB single-chip
  • CH557 - RGB-LED and USB Enhanced MCU

Full PDF Text Transcription

Click to expand full text
CH543 Datasheet http://wch.cn USB PD MCU CH543/CH542, USB MCU CH541/CH540 Datasheet Version: 1C http://wch.cn 1. Overview CH543 is a USB and USB PD enhanced E8051 core MCU compatible with MCS51 instruction set. 79% of its instructions are single-byte single-cycle instructions, and the average instruction speed is 8 to 15 times faster than that of the standard MCS51. CH543 supports up to 48 MHz system clock frequency, with built-in 16 K Flash-ROM, 256-byte internal iRAM and 256-byte on-chip xRAM. xRAM supports direct memory access (DMA). CH543 provides a built-in USB Power Delivery controller and PD BMC PHY transceiver. CH543 supports USB type C, BC, PD2.0, and PD3.0, and supports 12V high-voltage power. It can act as PMIC used for power management, Sink, Source and DRP.
