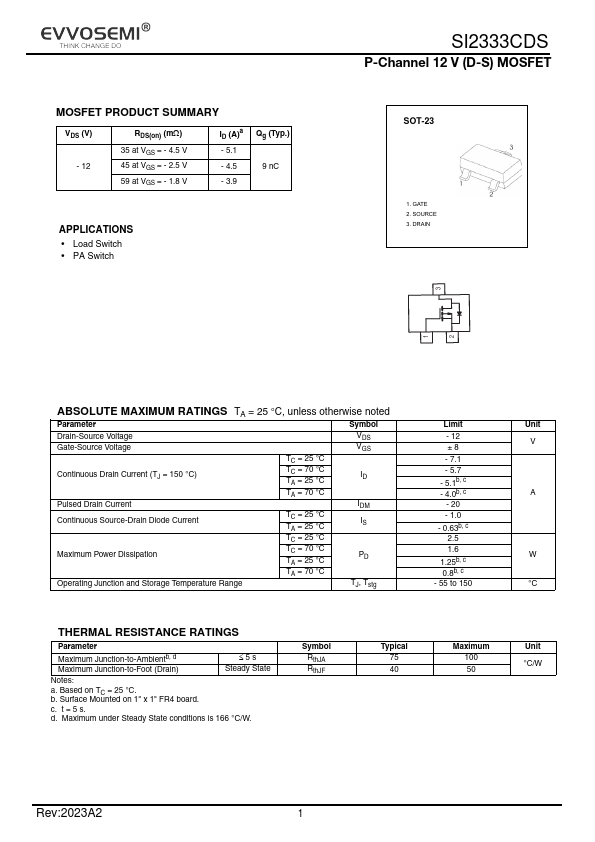

MOSFET PRODUCT SUMMARY
VDS (V) - 12
RDS(on) (mΩ) 35 at VGS = - 4.5 V 45 at VGS = - 2.5 V 59 at VGS = - 1.8 V
ID (A)a - 5.1 - 4.5 - 3.9
Qg (Typ.) 9 nC
APPLICATIONS • Load Switch • PA Switch
SI2333CDS
P-Channel 12 V (D-S) MOSFET
SOT-23
1. GATE 2. SOURCE 3. DRAIN
1 3
2
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter
Symbol
Limit
Unit
Drain-Source Voltage Gate-Source Voltage
VDS
- 12
V
VGS
±8
TC = 25 °C
- 7.1
Continuous Drain Current (TJ = 150 °C)
TC = 70 °C TA = 25 °C
ID
- 5.7 - 5.1b, c
Pulsed Drain Current Continuous Source-Drain Diode Current
TA = 70 °C
IDM
TC = 25 °C TA = 25 °C
IS
TC = 25 °C
- 4.0b, c
A
- 20
- 1.0
- 0.63b, c
2.5
Maximum Power Dissipation
TC = 70 °C TA = 25 °C
PD
TA = 70 °C
1.6
W
1.25b, c
0.
