SI2333CDS - -12V P-ChanneI MOSFET

General Description

SOT-23 1 G GATE 2 S SOURCE 3 D DRAIN 1 2.Applications Load Switch PA Switch 3 D G 2 S 4.Absolute Maximum Ratings TA= 25°C Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current Continuous Source-Drain Diode Current TC=25°C

Key Features

  • VDS(V)=-12V Qg=9nC RDS(ON).

📥 Download Datasheet

Datasheet Details

Part number SI2333CDS
Manufacturer UMW
File Size 212.34 KB
Description -12V P-ChanneI MOSFET
Datasheet download datasheet SI2333CDS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2333CDS 12V P-Channel MOSFET Vishay Siliconix
SI2333CDS 12V P-Channel MOSFET EVVOSEMI
SI2333CDS P-Channel Enhancement MOSFET Kexin
SI2333CDS-T1-GE3 P-Channel MOSFET VBsemi
SI2333 P-ChannelEnhancement Mode Power MOSFET PUOLOP

Other Datasheets by UMW

Part Number Description
SI2300A 20V N-ChanneI MOSFET
SI2301B P-Channel MOSFET
SI2302A 20V N-ChanneI MOSFET
SI2304A 30V N-ChanneI MOSFET
SI2305A P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

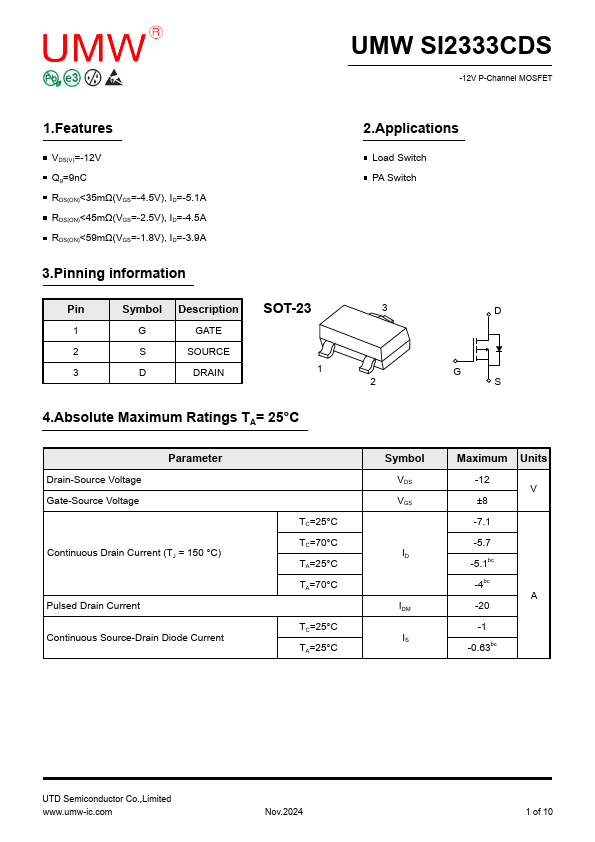

UMW SI2333CDS -12V P-ChanneI MOSFET 1.Features VDS(V)=-12V Qg=9nC RDS(ON)<35mΩ(VGS=-4.5V), ID=-5.1A RDS(ON)<45mΩ(VGS=-2.5V), ID=-4.5A RDS(ON)<59mΩ(VGS=-1.8V), ID=-3.9A 3.Pinning information Pin Symbol Description SOT-23 1 G GATE 2 S SOURCE 3 D DRAIN 1 2.Applications Load Switch PA Switch 3 D G 2 S 4.Absolute Maximum Ratings TA= 25°C Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current Continuous Source-Drain Diode Current TC=25°C TC=70°C TA=25°C TA=70°C TC=25°C TA=25°C Symbol VDS VGS ID IDM IS Maximum Units -12 V ±8 -7.1 -5.7 -5.1bc -4bc A -20 -1 -0.63bc UTD Semiconductor Co.,Limited www.umw-ic.com Nov.2024 1 of 10 www.umw-ic.
