SI2333CDS - P-Channel Enhancement MOSFET

Key Features

  • s.
  • VDS (V) =-12V.
  • ID =-5.1A (VGS =-4.5V).
  • RDS(ON) ＜ 35mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 45mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 59mΩ (VGS =-1.8V) G1 S2 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 +0.2 2.8 -0.1 3D 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2333CDS -12V P-ChanneI MOSFET UMW
SI2333CDS 12V P-Channel MOSFET Vishay Siliconix
SI2333CDS 12V P-Channel MOSFET EVVOSEMI
SI2333CDS-T1-GE3 P-Channel MOSFET VBsemi
SI2333 P-ChannelEnhancement Mode Power MOSFET PUOLOP

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2333DS P-Channel MOSFET
SI2335DS P-Channel Enhancement MOSFET
SI2337DS P-Channel Enhancement MOSFET
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

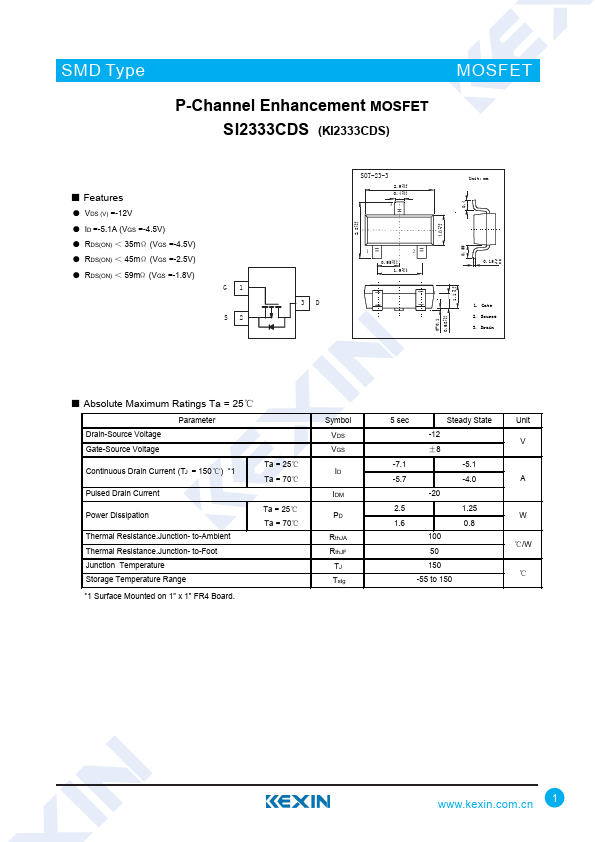

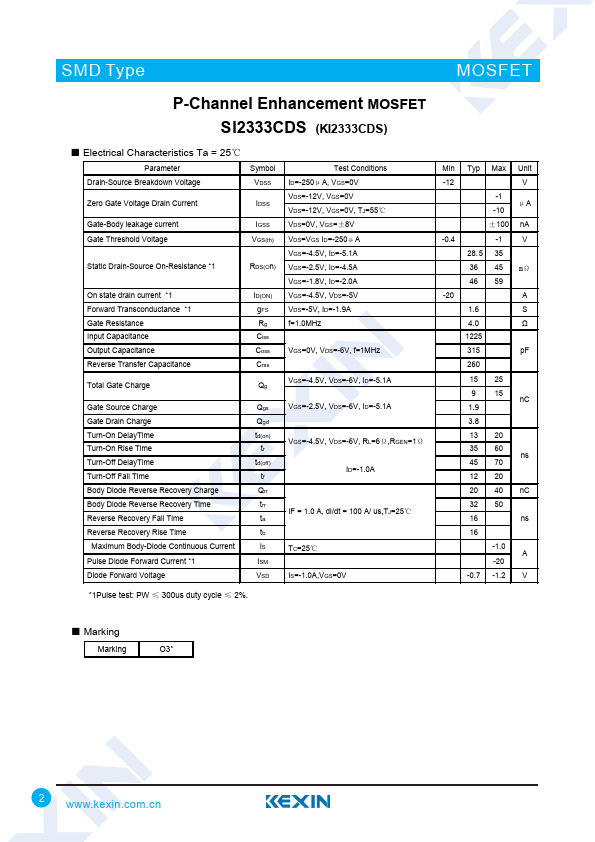

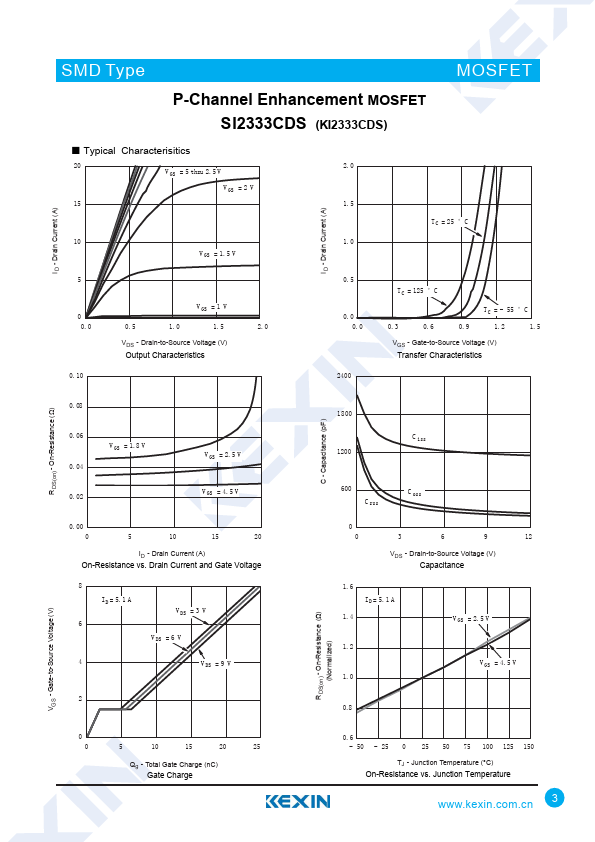

SMD Type P-Channel Enhancement MOSFET SI2333CDS (KI2333CDS) MOSFET ■ Features ● VDS (V) =-12V ● ID =-5.1A (VGS =-4.5V) ● RDS(ON) ＜ 35mΩ (VGS =-4.5V) ● RDS(ON) ＜ 45mΩ (VGS =-2.5V) ● RDS(ON) ＜ 59mΩ (VGS =-1.8V) G1 S2 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 +0.2 2.8 -0.1 3D 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150℃) *1 Pulsed Drain Current Ta = 25℃ Ta = 70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
