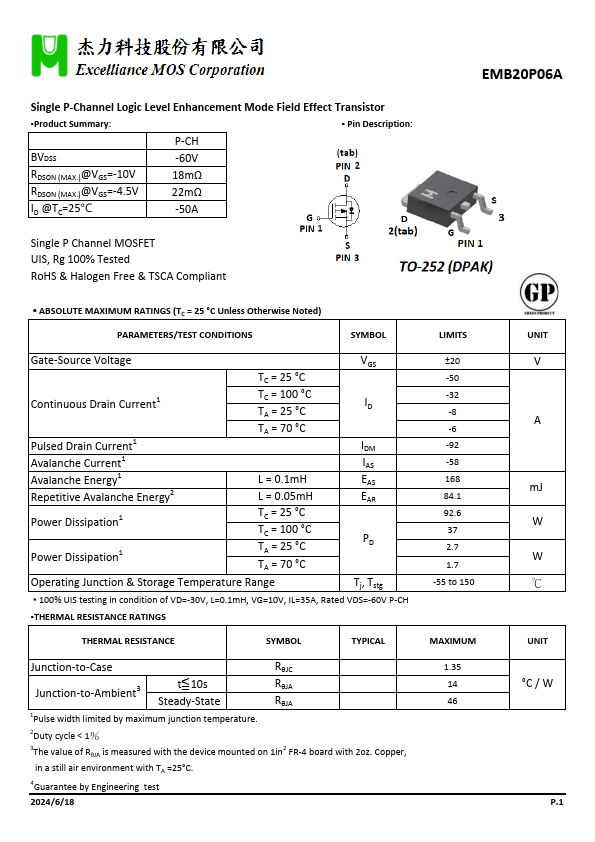

EMB20P06A
EMB20P06A is P-Channel Logic Level Enhancement Mode Field Effect Transistor manufactured by Excelliance MOS.
Description
:
P-CH
BVDSS
-60V
RDSON (MAX.)@VGS=-10V RDSON (MAX.)@VGS=-4.5V ID @TC=25℃
18mΩ 22mΩ -50A
Single P Channel MOSFET UIS, Rg 100% Tested Ro HS & Halogen Free & TSCA pliant
- ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted)
PARAMETERS/TEST CONDITIONS
SYMBOL
Gate-Source Voltage
TC = 25 °C
Continuous Drain Current1
TC = 100 °C TA = 25 °C
Pulsed Drain Current1 Avalanche Current1 Avalanche Energy1 Repetitive Avalanche Energy2
Power Dissipation1
Power Dissipation1
TA = 70 °C
L = 0.1m H
L = 0.05m H
TC = 25 °C
TC = 100 °C TA = 25 °C
TA = 70 °C
Operating Junction & Storage Temperature Range
Tj, Tstg
- 100% UIS testing in condition of VD=-30V, L=0.1m H, VG=10V, IL=35A, Rated VDS=-60V P-CH
- THERMAL RESISTANCE RATINGS
THERMAL RESISTANCE
SYMBOL
TYPICAL
Junction-to-Case
RθJC...
