Si4953DY - Dual P-Channel Enhancement Mode MOSFET

General Description

These P-Channel Enhancement Mode MOSFETs are produced using Fairchild Semiconductor's advance process that has been especially tailored to minimize onstate resistance and yet maintain superior switching performance.

Key Features

  • • -4.9 A, -30 V. RDS(on) = 0.053 Ω @ VGS = -10 V RDS(on) = 0.095 Ω @ VGS = -4.5 V. • Low gate charge. • Fast switching speed. • High power and current handling capability. ' ' ' ' 62.
  •  6.
  •  6 $.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
Si4953DY Dual P-Channel MOSFET TEMIC
Si4953DY 30V Dual P-Channel MOSFET Vishay
SI4953DY Dual P-Channel MOSFET Kexin
Si4953 Dual P-Channel MOSFET Nanxin
SI4953ADY Dual P-Channel MOSFET Kexin

Other Datasheets by Fairchild (now onsemi)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

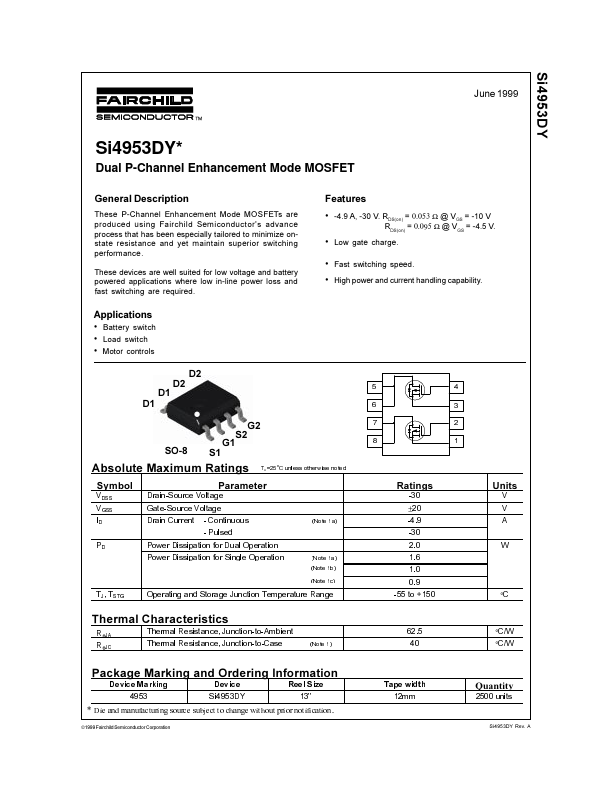

Si4953DY June 1999 Si4953DY* Dual P-Channel Enhancement Mode MOSFET General Description These P-Channel Enhancement Mode MOSFETs are produced using Fairchild Semiconductor's advance process that has been especially tailored to minimize onstate resistance and yet maintain superior switching performance. These devices are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required. Applications • Battery switch • Load switch • Motor controls Features • -4.9 A, -30 V. RDS(on) = 0.053 Ω @ VGS = -10 V RDS(on) = 0.095 Ω @ VGS = -4.5 V. • Low gate charge. • Fast switching speed. • High power and current handling capability.
