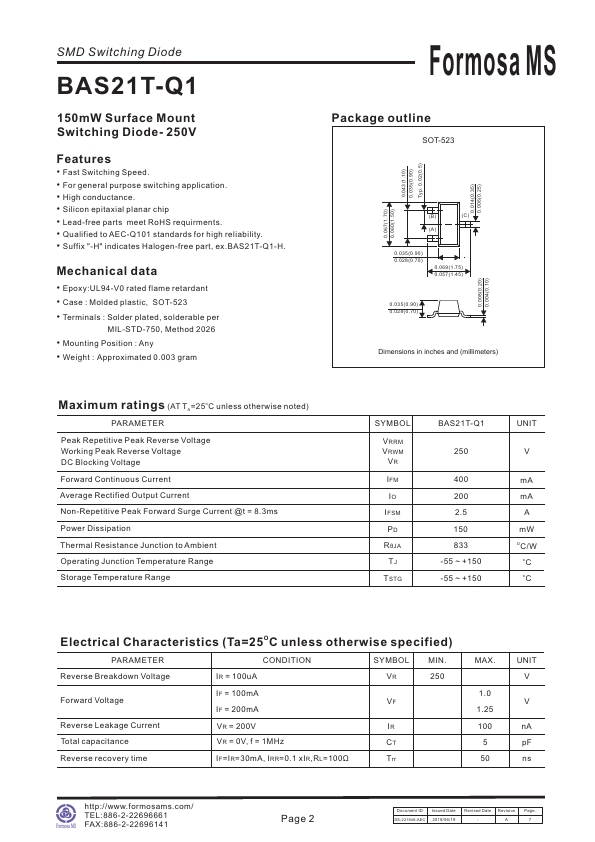

BAS21T-Q1 Description
SMD Switching Diode BAS21T-Q1 150mW Surface Mount Switching Diode- 250V.
BAS21T-Q1 Key Features
- Fast Switching Speed
- For general purpose switching application
- High conductance
- Silicon epitaxial planar chip
- Lead-free parts meet RoHS requirments
- Qualified to AEC-Q101 standards for high reliability
- Suffix "-H" indicates Halogen-free part, ex.BAS21T-Q1-H
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, SOT-523
- Mounting Position : Any
