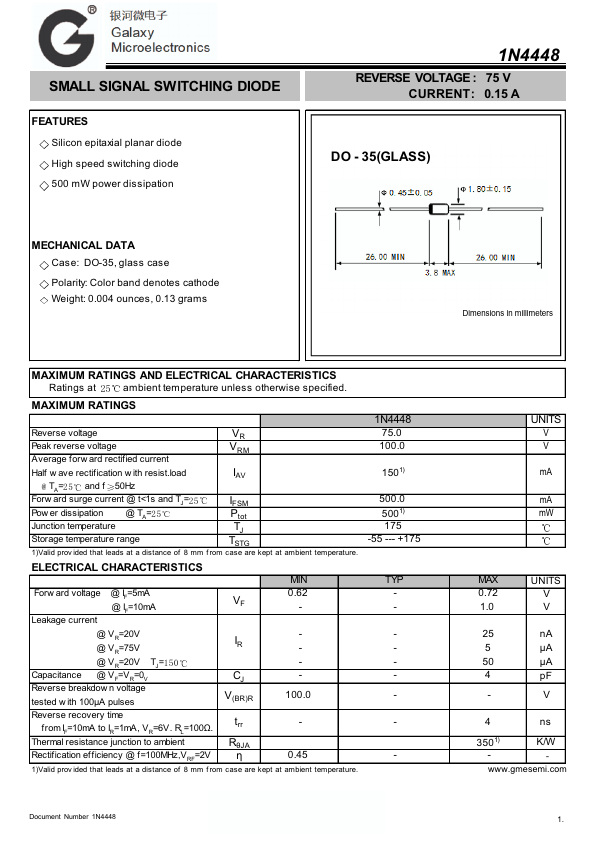

1N4448
1N4448 is 75V 0.15A SMALL SIGNAL SWITCHING DIODE manufactured by Galaxy Microelectronics.
SMALL SIGNAL SWITCHING DIODE
Features
Silicon epitaxial planar diode High speed switching diode 500 mW power dissipation
REVERSE VOLTAGE : 75 V CURRENT: 0.15 A
- 35(GLASS)
MECHANICAL DATA Case: DO-35, glass case Polarity: Color band denotes cathode Weight: 0.004 ounces, 0.13 grams
Dimensions in millimeters
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at ambient temperature unless otherwise specified.
MAXIMUM RATINGS
Reverse voltage Peak reverse voltage Average forw ard rectified current
VR VRM
Half w ave rectification w ith resist.load
# TA= and f 50Hz
Forw ard surge current @ t<1s and TJ=
IFSM
Pow er dissipation
@ TA=
Ptot
Junction...
