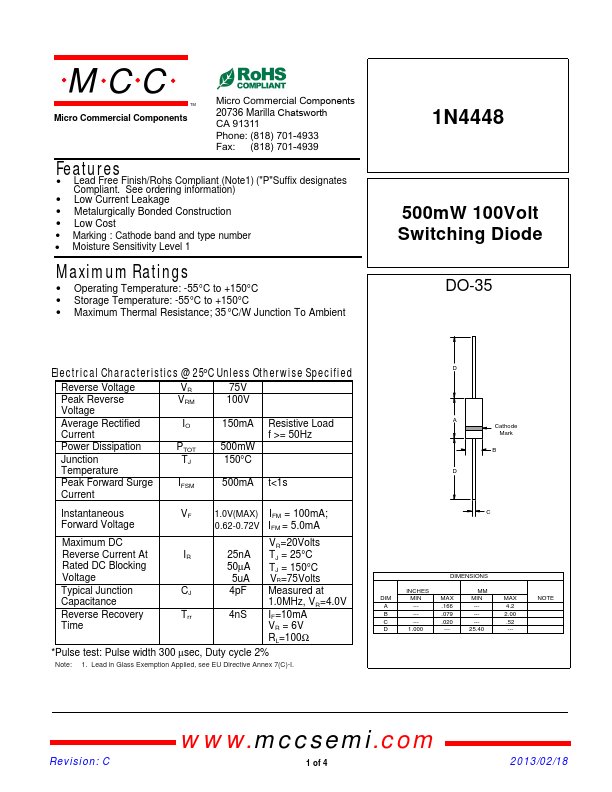

1N4448
1N4448 is 100V 500mW Switching Diode manufactured by Micro Commercial Components.
Micro mercial ponents
omponents 20736 Marilla Chatsworth
!"# $
% !"#
Features
- Lead Free Finish/Rohs pliant (Note1) ("P"Suffix designates pliant. See ordering information)
- Low Current Leakage
- Metalurgically Bonded Construction
- Low Cost
- Marking : Cathode band and type number
- Moisture Sensitivity Level 1
Maximum Ratings
- Operating Temperature: -55°C to +150°C
- Storage Temperature: -55°C to +150°C
- Maximum Thermal Resistance; 35 °C/W Junction To Ambient
500mW 100Volt Switching Diode
DO-35
Electrical Characteristics @ 25°C Unless Otherwise Specified
Reverse Voltage Peak Reverse...
