1SS226 Datasheet | Galaxy Microelectronics

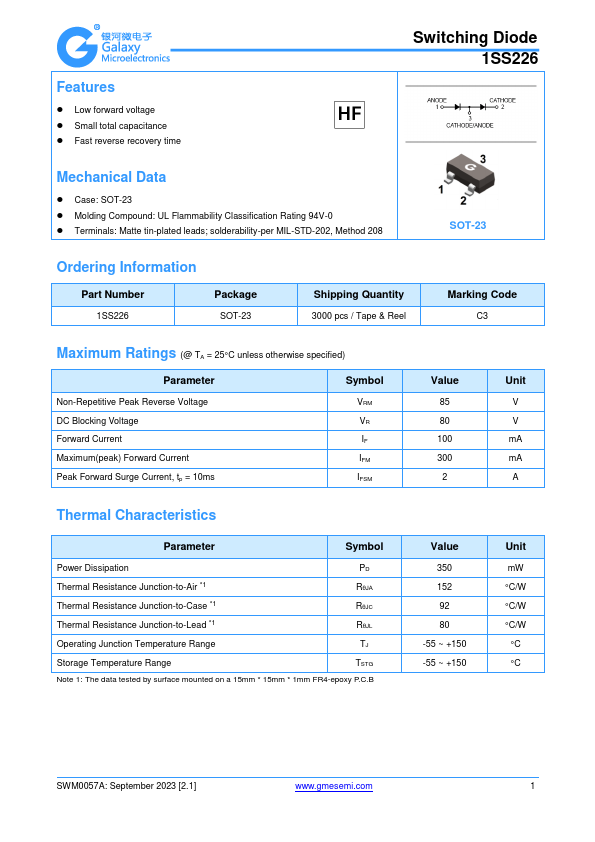

Features - Low forward voltage - Small total capacitance - Fast reverse recovery time Switching Diode 1SS226 Mechanical Data - Case: SOT-23 - Molding pound: UL Flammability Classification Rating 94V-0 - Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code C3 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Non-Repetitive Peak Reverse Voltage DC Blocking Voltage Forward Current Maximum(peak) Forward Current Peak Forward Surge Current, tp = 10ms Symbol VRM VR IF IFM IFSM Value 85 80 100 300 2 Unit V V m A m A A Thermal Characteristics Parameter Symbol...
