1SS226

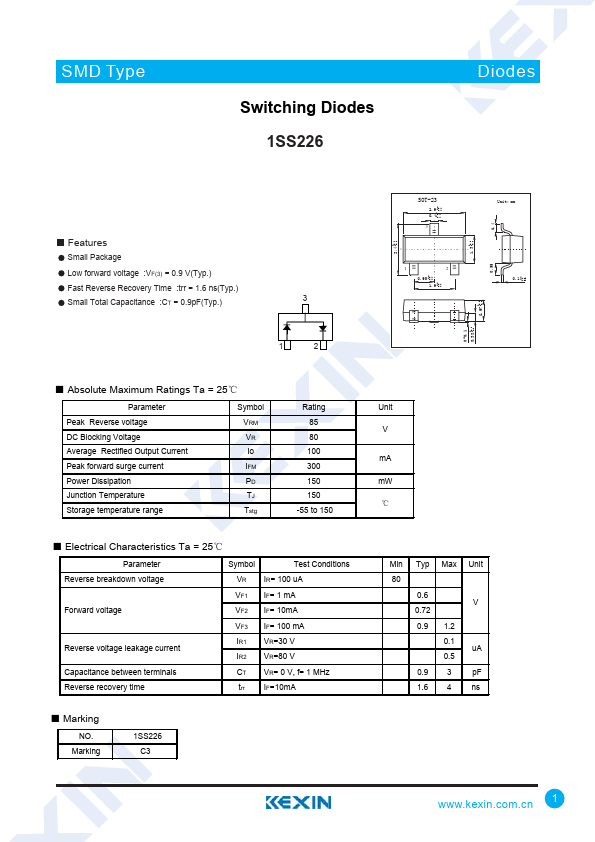

1SS226 is Switching Diodes manufactured by Kexin Semiconductor.
Features
Small Package Low forward voltage :VF(3) = 0.9 V(Typ.) Fast Reverse Recovery Time :trr = 1.6 ns(Typ.) Small Total Capacitance :CT = 0.9p F(Typ.)
+0.1 2.4 -0.1
0-0.1 +0.1 0.38
-0.1
SOT-23
2.9 +0.1 -0.1
0.4+0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
+0.1 0.97 -0.1
Unit: mm
0.1 +0.05 -0.01
1.Base 2.Emitter 3.collector
- Absolute Maximum Ratings Ta = 25℃
Parameter Peak Reverse voltage DC Blocking Voltage Average Rectified Output Current Peak forward surge current Power Dissipation Junction Temperature Storage temperature range
Symbol
Rating
Unit
Io
100 m A
150 m W
℃
Tstg
-55 to 150
- Electrical Characteristics Ta = 25℃
Parameter Reverse breakdown voltage
Forward...
