1SS352 - Silicon Epitaxial Planar Diode

Key Features

  • z Small package z Low forward voltage z Fast reverse recovery time z Small total capacitance Pb Lead-free Production specification 1SS352.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1SS352 Silicon Epitaxial Planar Type Diode Toshiba Semiconductor
1SS352 ULTRA HIGH SPEED SWITCHING DIODE Kexin
1SS352 Silicon Epitaxial Planar Switching Diode SEMTECH
1SS350 Sillicon Epitaxial Schottky Barrier Diode Sanyo Semicon Device
1SS351 Sillicon Epitaxial Schottky Barrier Diode Sanyo Semicon Device

Other Datasheets by Galaxy Microelectronics

Part Number Description
1SS355 Silicon Epitaxial Planar Diode
1SS357 Surface mounting schottky Diode
1SS344 Surface mount schottky diode
1SS370 Surface Mount Switching Diode
1SS372 Schottky Barrier Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

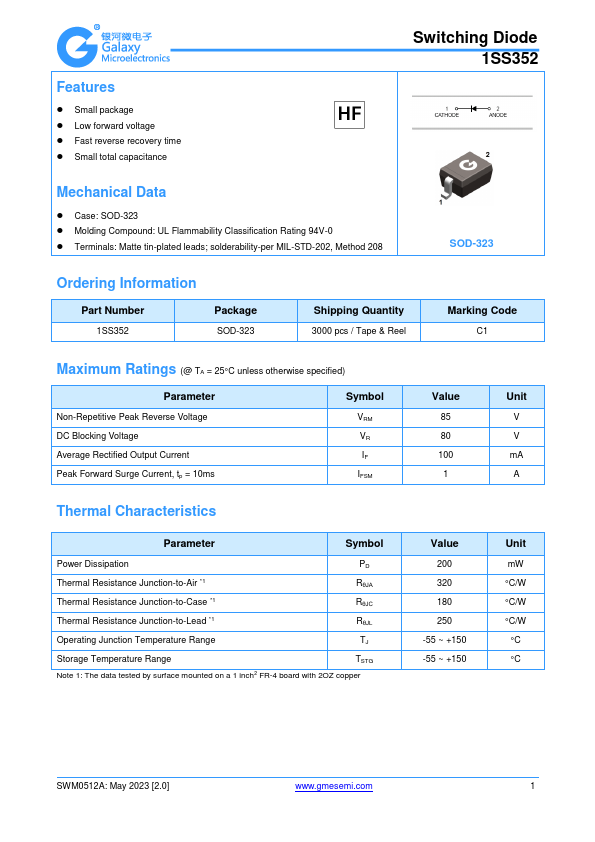

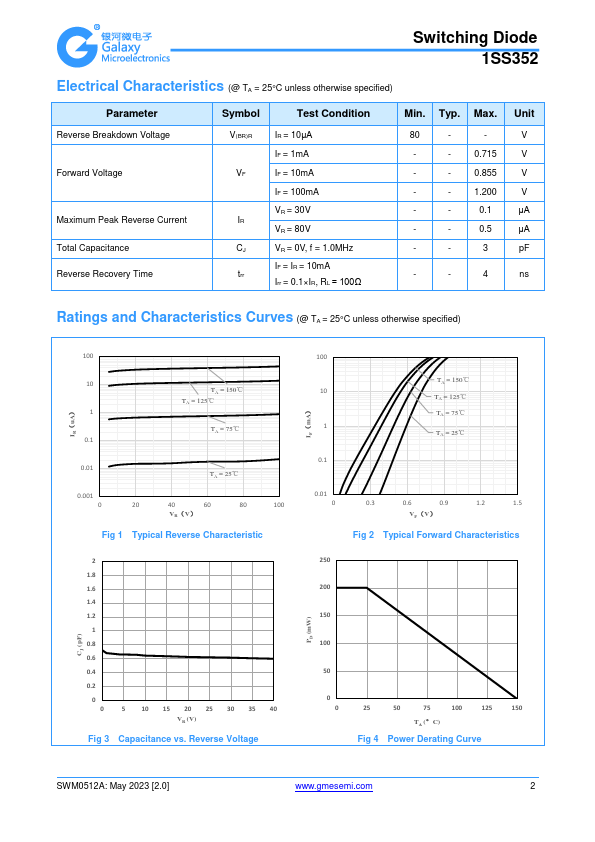

Silicon Epitaxial Planar Diode FEATURES z Small package z Low forward voltage z Fast reverse recovery time z Small total capacitance Pb Lead-free Production specification 1SS352 APPLICATIONS z High speed switching ORDERING INFORMATION Type No. Marking 1SS352 C1 SOD-323 Package Code SOD-323 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Parameter Symbol Limits Peak reverse voltage DC Reverse Voltage Average Rectified Output Current Surge current(10ms) Power Dissipation Junction temperature Storage temperature VRM VR IO IFSM PD Tj TSTG 85 80 100 1 200 125 -55 to +125 Unit V V mA A mW ℃ ℃ ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified B053 Rev.A www.gmicroelec.
