2SB1132 - PNP General Purpose Amplifier

Key Features

  • z Low VCE(SAT)=-0.2V(Typ. ) (IC/IB=-500mA/-50mA). z Complementary NPN type available 2SD1664. Pb Lead-free 2SB1132.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1132 PNP Transistor Rohm
2SB1132 PNP Transistor HOTTECH
2SB1132 Plastic-Encapsulate Transistors WILLAS
2SB1132 PNP Transistor JCET
2SB1132 MEDIUM POWER TRANSISTOR AiT Components

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SB1119 PNP Epitaxial Planar Silicon Transistors
2SB1184 Power Transistor
2SB1185 Power Transistor
2SB1188 Medium power transistor
2SB1189 Medium power transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

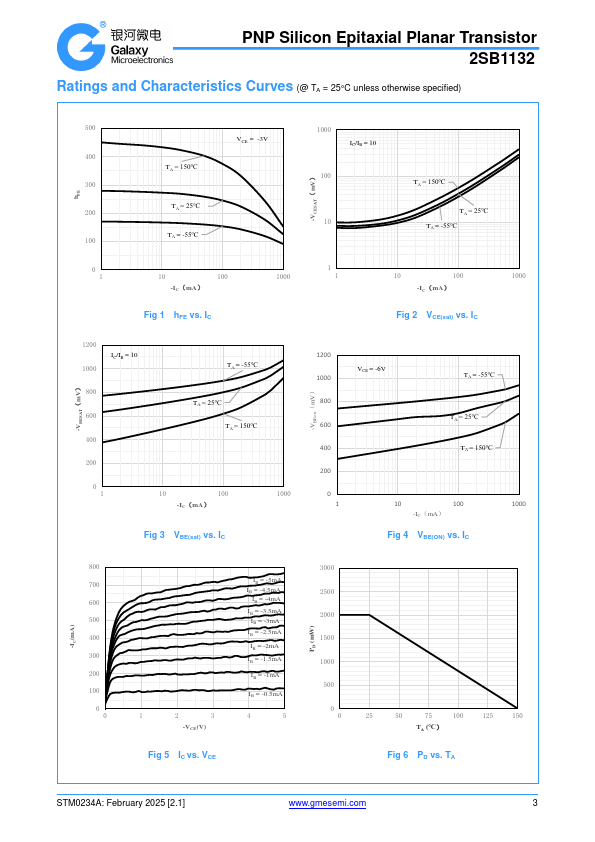

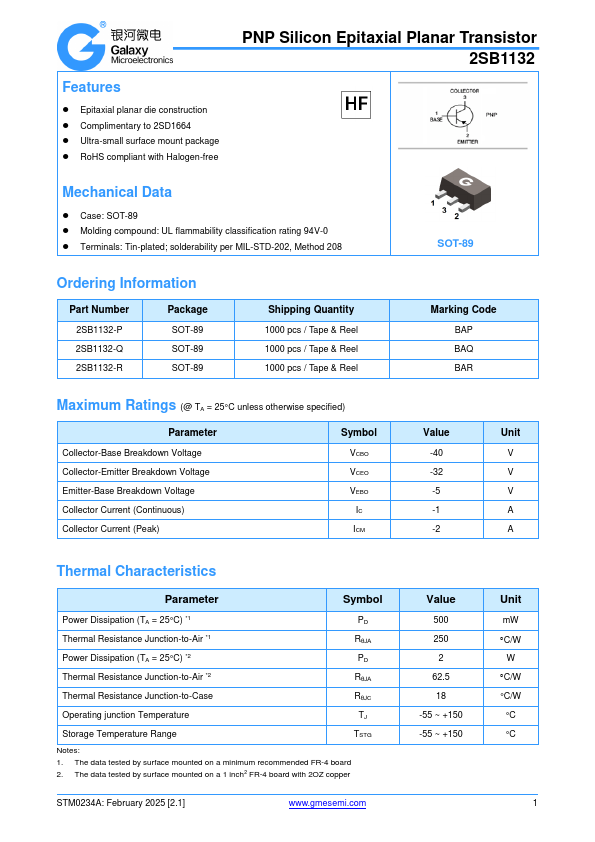

Production specification PNP General Purpose Amplifier FEATURES z Low VCE(SAT)=-0.2V(Typ.) (IC/IB=-500mA/-50mA). z Complementary NPN type available 2SD1664. Pb Lead-free 2SB1132 APPLICATIONS z This device is designed as a general purpose amplifier and switching. ORDERING INFORMATION Type No. Marking 2SB1132 BAP/BAQ/BAR SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Unit VCBO Collector-Base Voltage -40 V VCEO Collector-Emitter Voltage -32 V VEBO IC PD Emitter-Base Voltage Collector Current –DC -Pulse Total Device Dissipation -5 V -1 -2 A 500 mW RθJA Thermal resistance,Junction-to-Ambient 250 ℃/W Tj,Tstg Junction and Storage Temperature -55 to+150 ℃ E028 Rev.A www.gmicroelec.
