2SB1216I - PNP Epitaxial Planar Silicon Transistors

Key Features

  • Fast switching speed.
  • Low collector-to-emitter saturation voltage.
  • Good linearity of hFE.
  • Small and slim package facilitating compactness of sets.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: TO-251, TO-252.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 Ordering Information TO-251 Part Number 2SB1216I-Q 2SB1216I-R 2SB1216I-S 2SB1216I-T 2SB1216-Q 2SB.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1216 PNP/NPN Transistor Sanyo Semicon Device
2SB1216 Silicon PNP Power Transistor Inchange Semiconductor
2SB1216 PNP Transistors Kexin
2SB1216 Bipolar Transistor ON Semiconductor
2SB1216 PNP PLANAR TRANSISTOR Unisonic Technologies

Other Datasheets by Galaxy Microelectronics

Part Number Description
2SB1216 PNP Epitaxial Planar Silicon Transistors
2SB1218A PNP Silicon Transistor
2SB1202 PNP Epitaxial Planar Silicon Transistors
2SB1240 Medium Power Transistor
2SB1241D Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

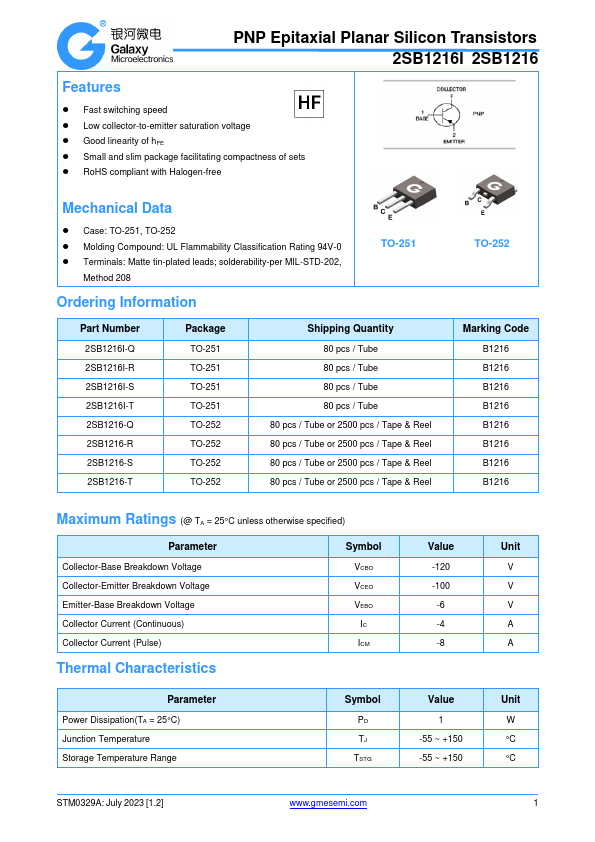

PNP Epitaxial Planar Silicon Transistors 2SB1216I 2SB1216 Features  Fast switching speed  Low collector-to-emitter saturation voltage  Good linearity of hFE  Small and slim package facilitating compactness of sets  RoHS compliant with Halogen-free Mechanical Data  Case: TO-251, TO-252  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 Ordering Information TO-251 Part Number 2SB1216I-Q 2SB1216I-R 2SB1216I-S 2SB1216I-T 2SB1216-Q 2SB1216-R 2SB1216-S 2SB1216-T Package TO-251 TO-251 TO-251 TO-251 TO-252 TO-252 TO-252 TO-252 Shipping Quantity 80 pcs / Tube 80 pcs / Tube 80 pcs / Tube 80 pcs / Tube 80 pcs / Tube or 2500 pcs / Tape & Reel 80 pcs / Tube or 2500 pcs / Tape & Reel 80 pcs / Tube or 2
