2SB1386 - PNP Silicon Epitaxial Planar Transistor

Datasheet Summary

Features

  • z Low VCE(sat)=-0.35V(Typ. ) (IC/IB=-4A/-0.1A). Pb Lead-free z Excellent DC current gain characteristics. z Complementary: 2SD2098. 2SB1386.

📥 Download Datasheet

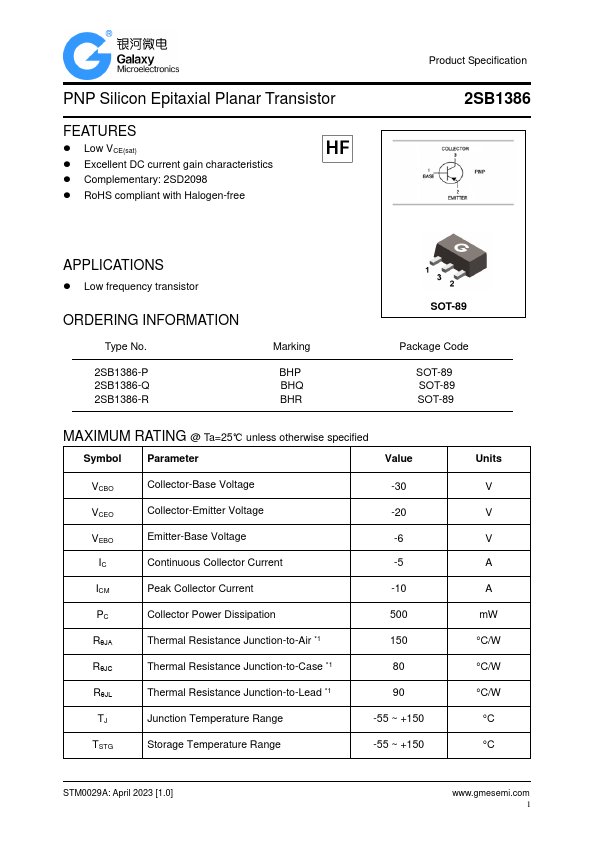

Datasheet preview – 2SB1386

Datasheet Details

Part number 2SB1386
Manufacturer GME
File Size 176.06 KB
Description PNP Silicon Epitaxial Planar Transistor
Datasheet download datasheet 2SB1386 Datasheet

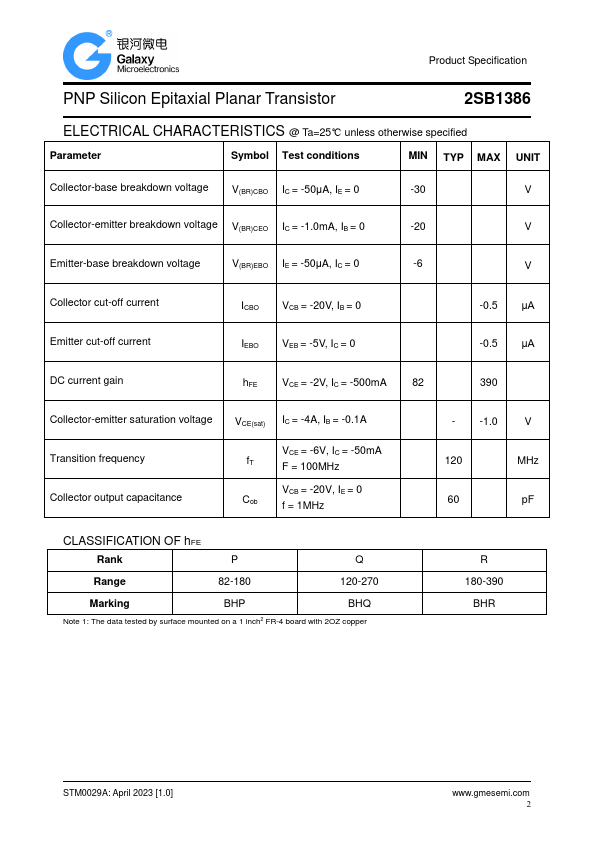

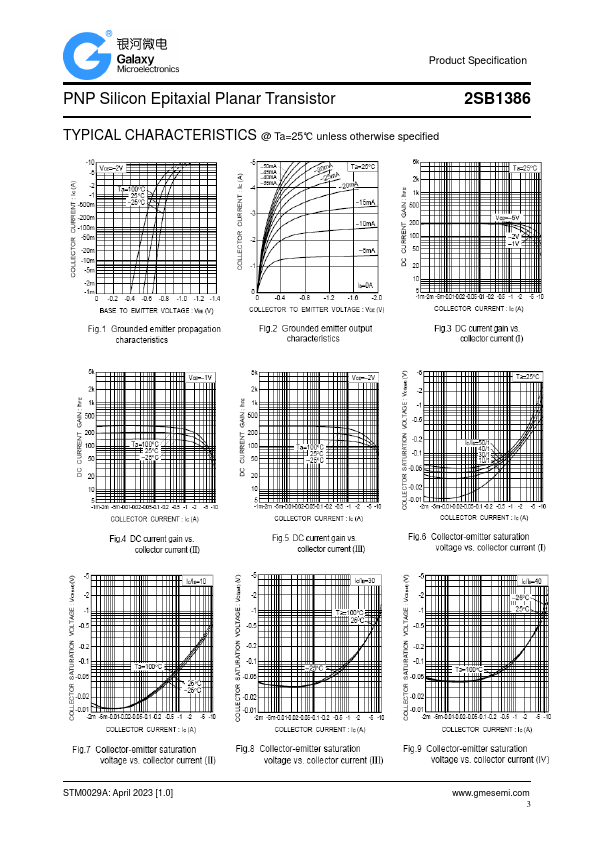

Additional preview pages of the 2SB1386 datasheet.

📁 Similar Datasheet

  • 2SB1386 - Low Frequency Transistor (Rohm)
  • 2SB1386 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
  • 2SB1386 - PNP GENERAL PURPOSE TRANSISTORS (Power Silicon)
  • 2SB1386 - PNP Transistor (JCET)
  • 2SB1386 - PNP Transistor (HOTTECH)
  • 2SB1386 - Epitaxial Planar Transistor (Weitron Technology)
  • 2SB1386 - LOW FREQUENCY PNP TRANSISTOR (UTC)
  • 2SB1386 - SOT-89 Plastic-Encapsulate Transistors (WILLAS)
  • 2SB1386 - Low Frequency Transistor (KEXIN)
  • 2SB1386 - PNP Silicon Low Frequency Transistor (SeCoS)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text
Production specification PNP Silicon Epitaxial Planar Transistor FEATURES z Low VCE(sat)=-0.35V(Typ.) (IC/IB=-4A/-0.1A). Pb Lead-free z Excellent DC current gain characteristics. z Complementary: 2SD2098. 2SB1386 APPLICATIONS z Low frequency transistor. ORDERING INFORMATION Type No. Marking 2SB1386 BHP/BHQ/BHR SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO Collector-Base Voltage Collector-Emitter Voltage -30 -20 VEBO IC PC RθJA Emitter-Base Voltage Collector Current Collector Dissipation -6 DC -5 Pulse -10 500 Thermal Resistance,,Junction-to- Ambient 300 RθJC Thermal Resistance,Junction -to-Case 80 Tj,Tstg Junction and Storage Temperature -55 to +150 Units V V V A mW ℃/W ℃/W ℃ E024 Rev.A www.
