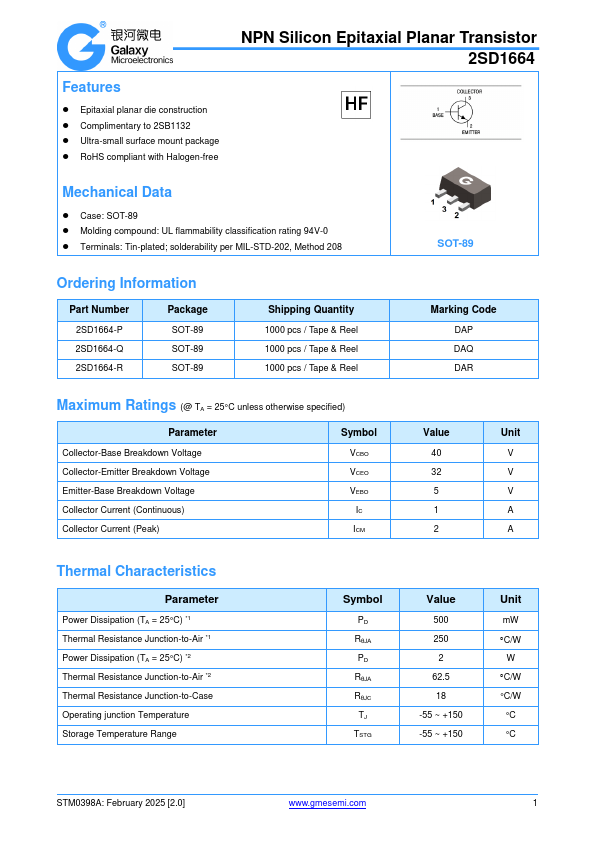

2SD1664 - NPN Silicon Epitaxial Planar Transistor

Key Features

  • Epitaxial planar die construction.
  • Complimentary to 2SB1132.
  • Ultra-small surface mount package.
  • RoHS compliant with Halogen-free NPN Silicon Epitaxial Planar Transistor 2SD1664 Mechanical Data.
  • Case: SOT-89.
  • Molding compound: UL flammability classification rating 94V-0.
  • Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-89 Ordering Information Part Number 2SD1664-P 2SD1664-Q 2SD1664-R Package SOT-89 SOT-89 SOT-89 Shipping Quantity 1000.

📥 Download Datasheet

Full PDF Text Transcription for 2SD1664 (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for 2SD1664. For precise diagrams, and layout, please refer to the original PDF.

Features  Epitaxial planar die construction  Complimentary to 2SB1132  Ultra-small surface mount package  RoHS compliant with Halogen-free NPN Silicon Epitaxial Plana...

View more extracted text

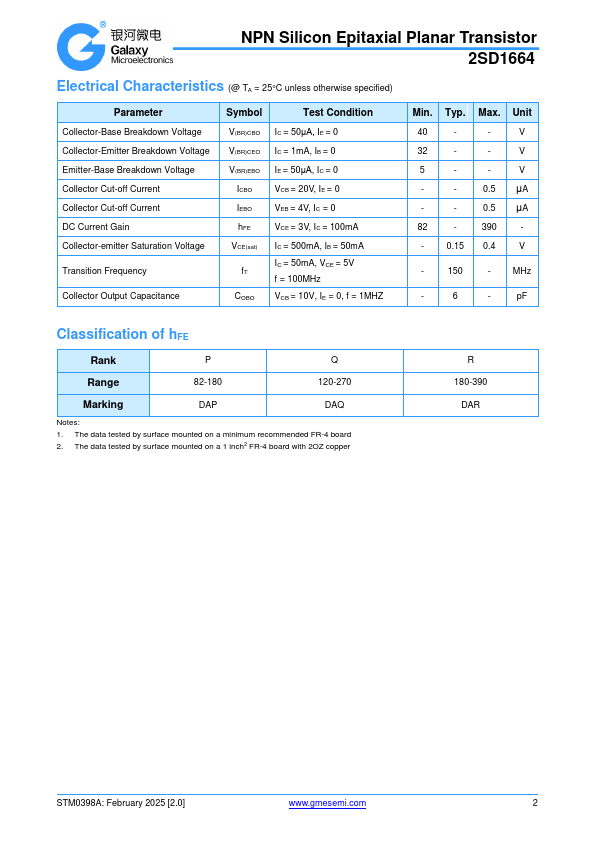

package  RoHS compliant with Halogen-free NPN Silicon Epitaxial Planar Transistor 2SD1664 Mechanical Data  Case: SOT-89  Molding compound: UL flammability classification rating 94V-0  Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-89 Ordering Information Part Number 2SD1664-P 2SD1664-Q 2SD1664-R Package SOT-89 SOT-89 SOT-89 Shipping Quantity 1000 pcs / Tape & Reel 1000 pcs / Tape & Reel 1000 pcs / Tape & Reel Marking Code DAP DAQ DAR Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage
