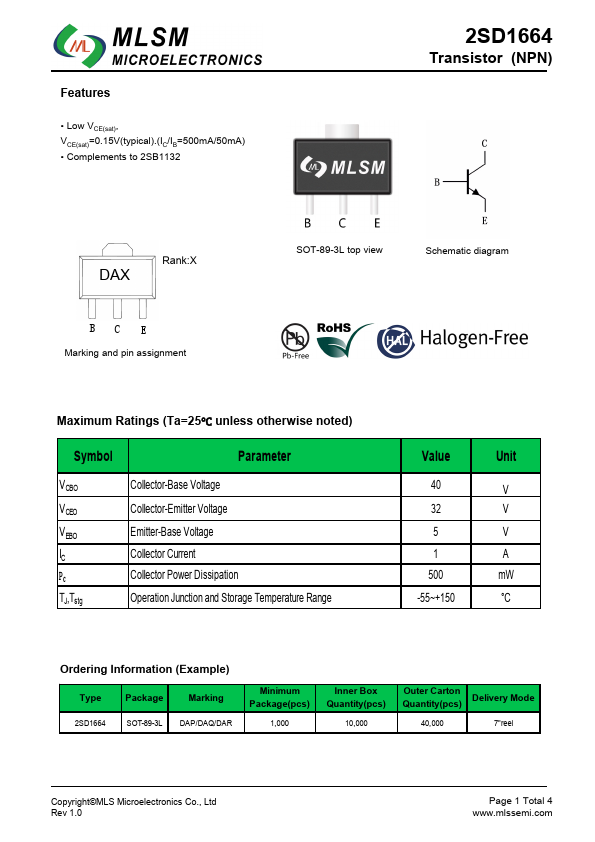

2SD1664
Features
- Low VCE(sat), VCE(sat)=0.15V(typical).(IC/IB=500m A/50m A)
- plements to 2SB1132
Transistor (NPN)
X:Rank
Rank:X
BC E
Marking and pin assignment
SOT-89-3L top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO VCEO VEBO IC PC TJ,Tstg
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operation Junction and Storage Temperature Range
Value
Unit
500 m W
-55~+150
°C
Ordering Information (Example)
Type
Package
Marking
SOT-89-3L DAP/DAQ/DAR
Minimum Package(pcs)
1,000
Inner Box Quantity(pcs)
10,000
Outer Carton Quantity(pcs)
Delivery Mode
40,000
7"reel
Copyright©MLS Microelectronics Co., Ltd Rev 1.0
Page 1 Total 4 .mlssemi.
Transistor (NPN)

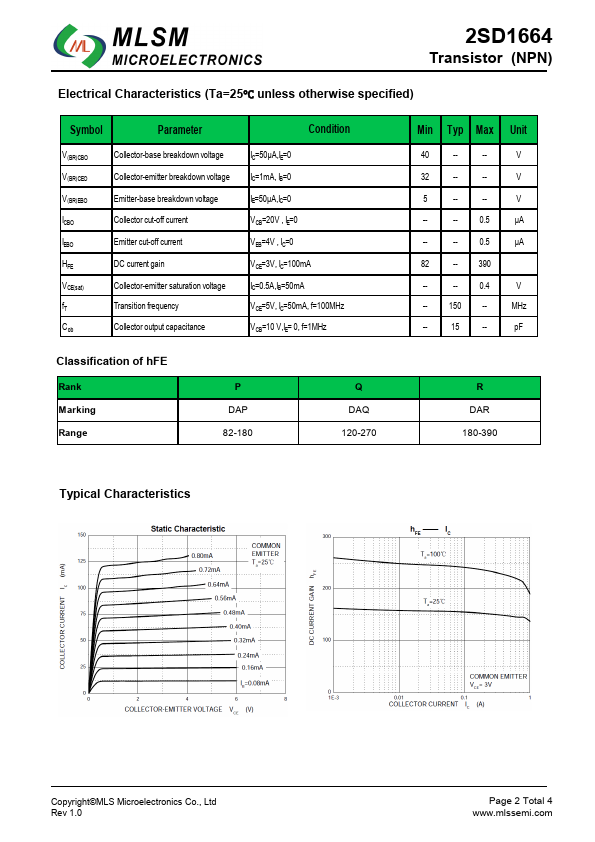

Electrical Characteristics (Ta=25℃ unless otherwise specified)
Symbol...
