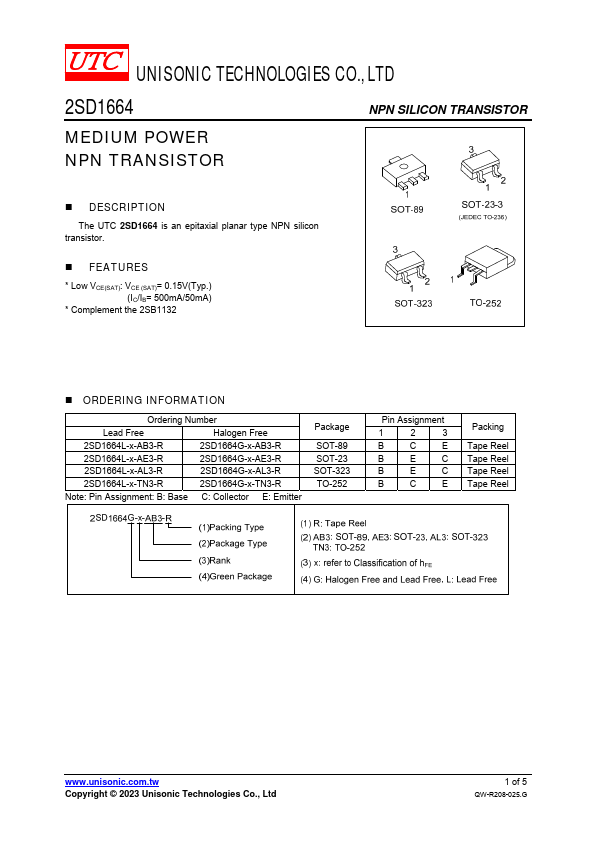

Unisonic Technologies 2SD1664
2SD1664 is an epitaxial planar type NPN silicon transistor.| Part No. | 2SD1664 |
|---|---|
| Datasheet | 2SD1664 Download |
| Manufacturer |  Unisonic Technologies |
| Description | MEDIUM POWER NPN TRANSISTOR |
| Buy | Stock & Price |
DESCRIPTION
The UTC●
FEATURES
* Low VCE(SAT): VCE (SAT)= 0.15V(Typ.) (IC/IB= 500mA/50mA) * Complement the 2SB1132● ORDERING INFORMATION Ordering Number Lead Free Halogen Free 2SD1664L-x-AB3-R 2SD1664G-x-AB3-R 2SD1664L-x-AE3-R 2SD1664G-x-AE3-R 2SD1664L-x-AL3-R 2SD1664G-x-AL3-R 2SD1664L-x-TN3-R 2SD1664G-x-TN3-R Note: Pin Assignment: B: Base C: Collector E: Emitter Package SOT-89 SOT-23 SOT-323 TO-252 Pin Assignment 1 2 3 B C E B E C B E C B C E Packing Tape Reel Tape Reel Tape Reel Tape Reel Copyright © 2023 Unisonic Technologies Co., Ltd 1 of 5 QW-R208-025.G 2SD1664

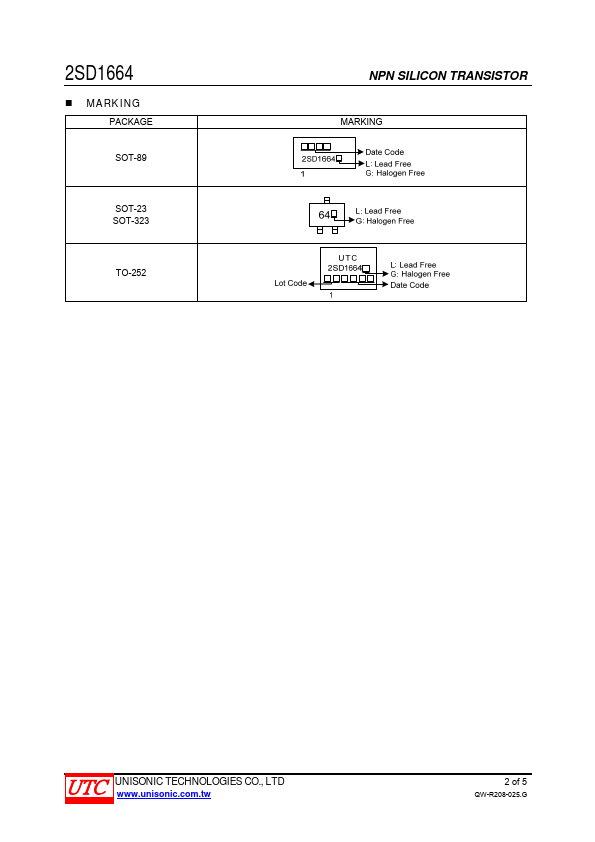

● MARKING PACKAGE SOT-89 SOT-23 SOT-323 TO-252 NPN SILICON TRANSISTOR MARKING UNISONIC TECHNOLOGIES CO., LTD 2 of 5 QW-R208-025.G 2SD1664 NPN SILICON TRANSISTOR
●

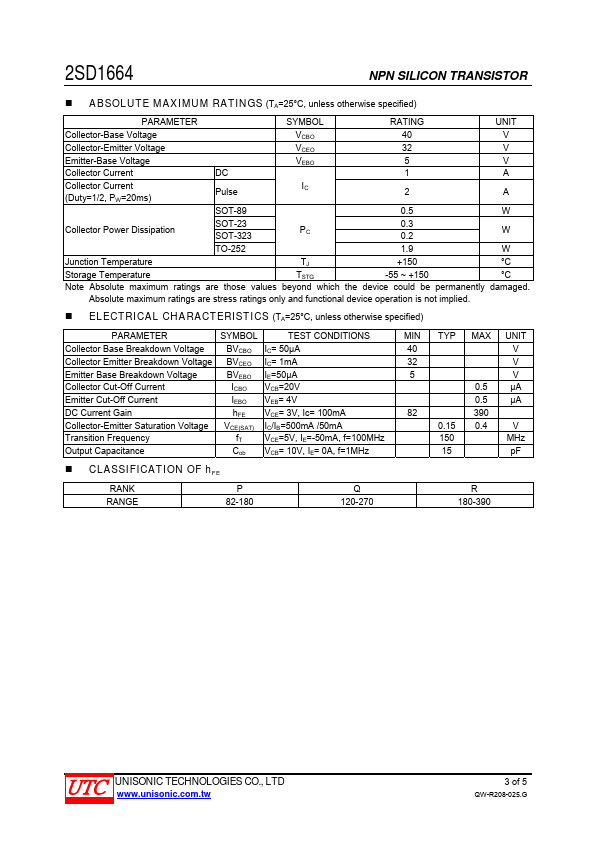

ABSOLUTE MAXIMUM RATINGS
(TA=25°C, unless otherwise specified) PARAMETER SYMBOL RATING UNIT Collector-Base Voltage Collector-Emitter Voltage VCBO 40 V VCEO 32 V Emitter-Base Voltage VEBO 5 V Collector Current DC 1 A Collector Current (Duty=1/2, PW=20ms) Pulse IC...
