3DD13009 - NPN Silicon Epitaxial Planar Transistor

Key Features

  • Low switch loss.
  • Low reverse leakage current.
  • Good high temperature characteristics Mechanic al Data.
  • Case: TO-220AB.
  • Molding compound: UL flammability classification rating 94V-0.
  • Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 TO-220AB Ordering Information Part Number 3DD13009 Package TO-220AB Shipping Quantity 50 pcs / Tube Marking Code 3DD13009 Maximum Ratings (@ TA = 25℃ unless otherwise specified) Parameter Collector-Base Breakdown V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
3DD13009 NPN Transistor INCHANGE
3DD13009 NPN Transistor LGE
3DD13009 NPN Transistor Dayan Technology
3DD13009A8 Silicon NPN Transistor Huajing Microelectronics
3DD13009A9 Silicon NPN bipolar transistor Huajing Microelectronics

Other Datasheets by Galaxy Microelectronics

Part Number Description
3DD13001 High Voltage Fast Switching NPN Power Transistor
3DD13002 High Voltage Fast Switching NPN Power Transistor
3DD13003 High Voltage Fast Switching NPN Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

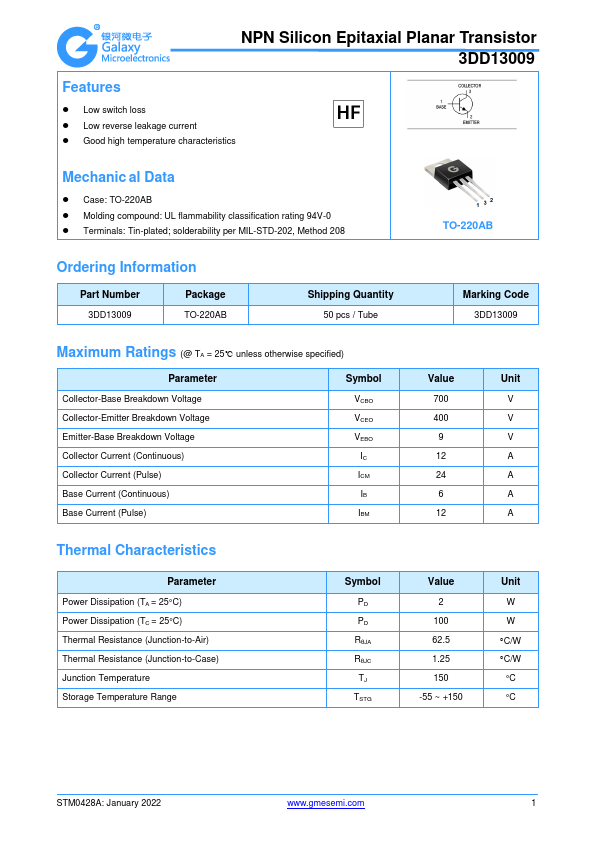

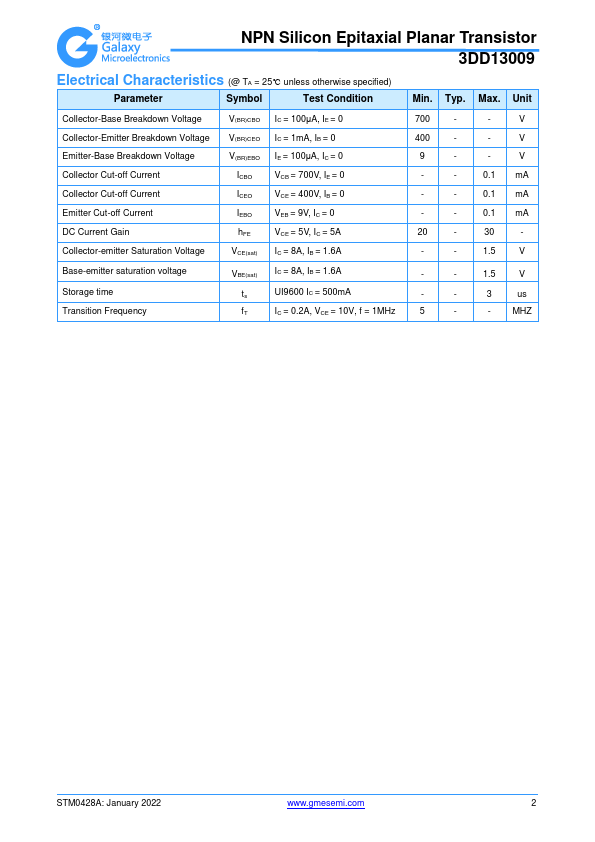

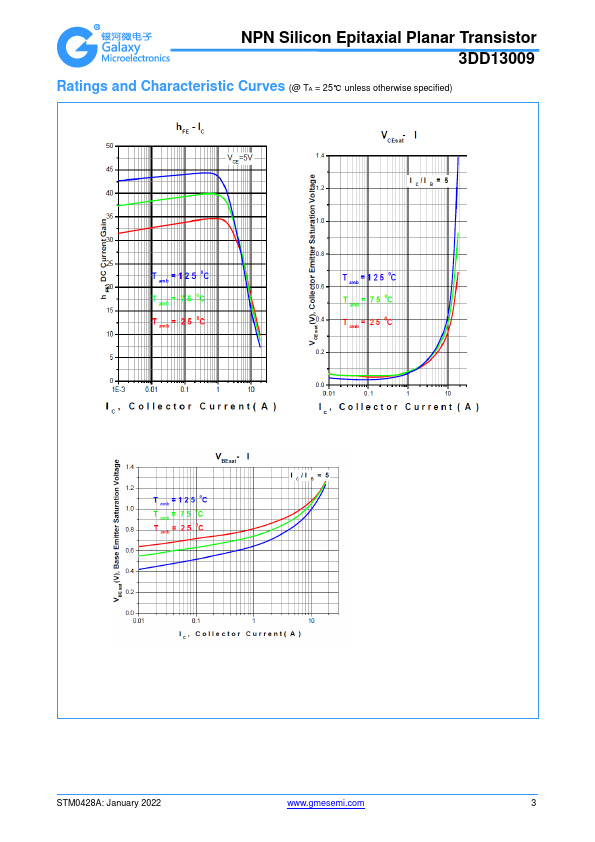

NPN Silicon Epitaxial Planar Transistor 3DD13009 Features  Low switch loss  Low reverse leakage current  Good high temperature characteristics Mechanic al Data  Case: TO-220AB  Molding compound: UL flammability classification rating 94V-0  Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 TO-220AB Ordering Information Part Number 3DD13009 Package TO-220AB Shipping Quantity 50 pcs / Tube Marking Code 3DD13009 Maximum Ratings (@ TA = 25℃ unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Collector Current (Pulse) Base Current (Continuous) Base Current (Pulse) Symbol VCBO VCEO VEBO IC ICM IB IBM Value 700 400 9 12 24 6 12 Unit V V V A A A A Th
