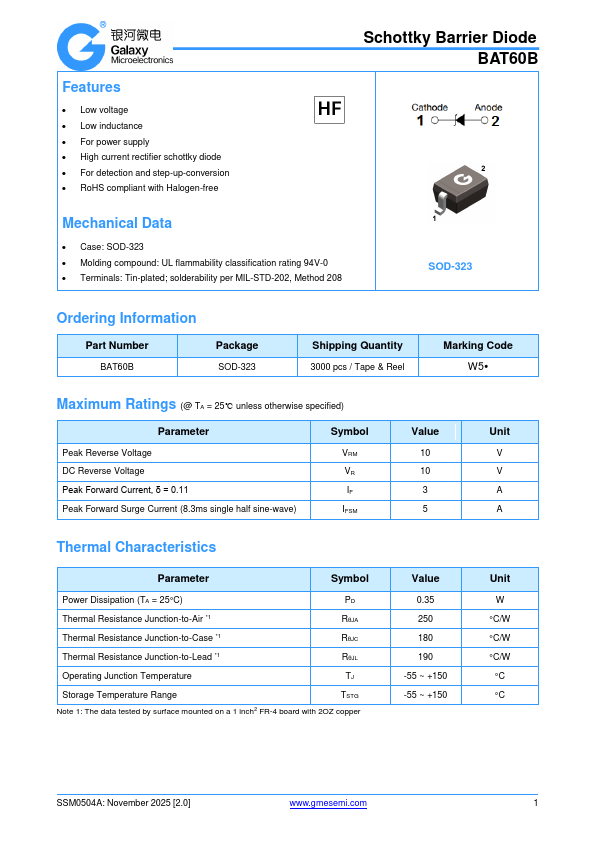

Download BAT60B Datasheet PDF
BAT60B datasheet preview

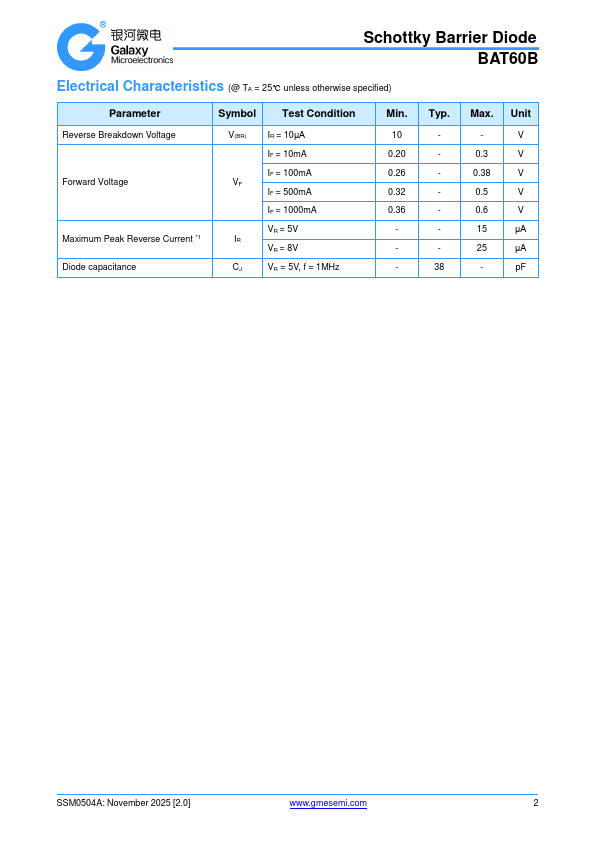

BAT60B page 2
Page 2
BAT60B page 3
Page 3

Equivalent or Similar Parts

Manufacturer Part Number Description
Siemens Semiconductor Group Logo Siemens Semiconductor Group BAT60B Silicon Schottky Diode
SeCoS Logo SeCoS Halbleitertechnologie GmbH BAT60B 3.0Amp 10V Schottky Barrier Rectifiers
WEITRON Logo WEITRON BAT60B Surface Mount Schottky Barrier Diode
MCC Logo Micro Commercial Components BAT60B Small Signal Schottky Diode
RECTRON Logo Rectron BAT60B Small-Signal Schottky Diodes

All BAT60B datasheets

BAT60B Description

Features  Low voltage  Low inductance  For power supply  High current rectifier schottky diode  For detection and step-up-conversion  RoHS pliant with Halogen-free Schottky Barrier Diode BAT60B  Case: UL flammability classification rating 94V-0  Terminals: November 2025 [2.0] .gmesemi.

BAT60B Key Features

  • Low voltage
  • Low inductance
  • For power supply
  • High current rectifier schottky diode
  • For detection and step-up-conversion
  • RoHS pliant with Halogen-free
  • Case: SOD-323
  • Molding pound: UL flammability classification rating 94V-0
  • Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
