BAV70DW - Surface Mount Fast Switching Diodes

Key Features

  • z Fast switching speed. z For general purpose switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV70DW SMD Switching Diode Array Formosa MS
BAV70DW Switching Diode SeCoS
BAV70DW SURFACE MOUNT FAST SWITCHING DIODE WON-TOP
BAV70DW Switching Diodes MCC
BAV70DW Surface Mount Fast Switching Diodes LGE

Other Datasheets by Galaxy Microelectronics

Part Number Description
BAV70 Dual surface mount switching diode
BAV70M Dual surface mount switching diode
BAV70T High-speed double Diode
BAV74 Dual surface mount switching diode
BAV756DW Surface Mount Fast Switching Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

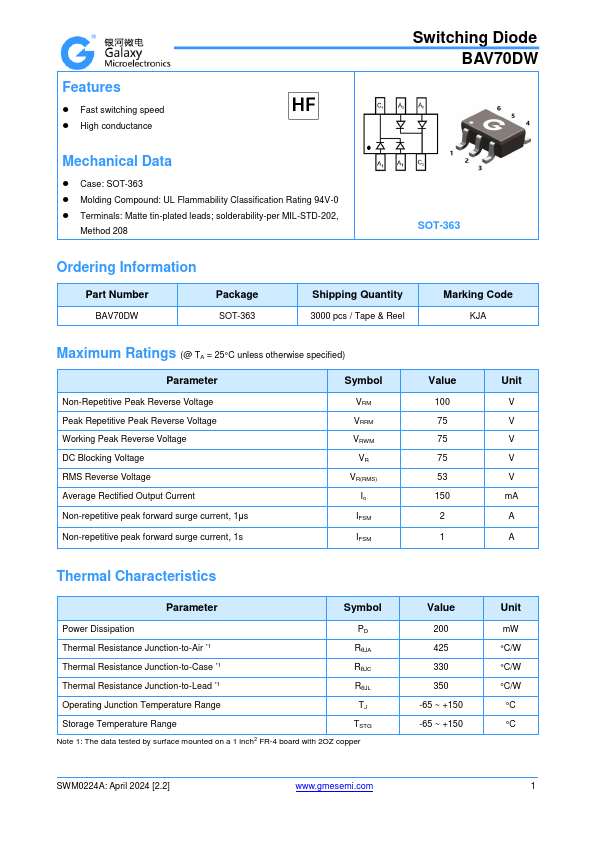

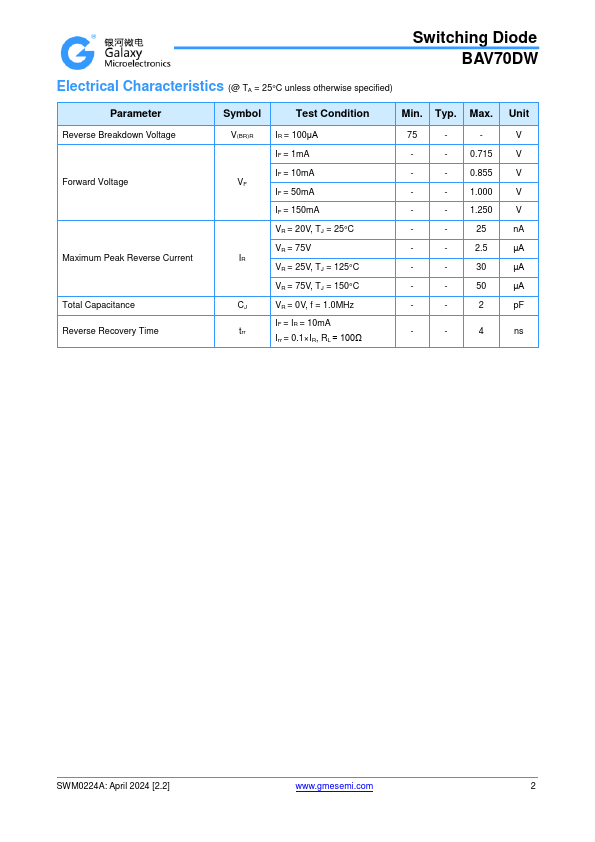

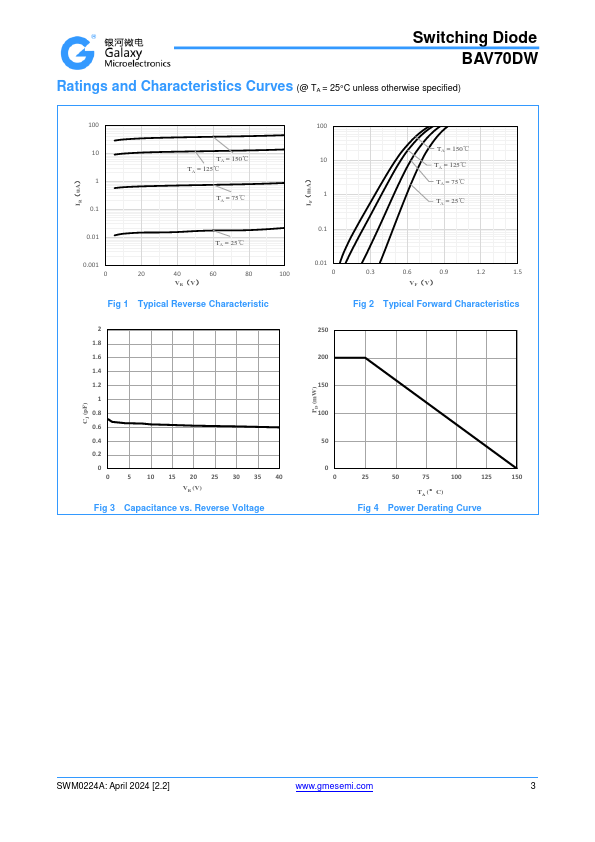

Production specification Surface Mount Fast Switching Diodes FEATURES z Fast switching speed. z For general purpose switching application. z Ultra-small surface mount package. z High conductance. z Two “BAV70”circuits in one package. Pb Lead-free BAV70DW APPLICATIONS z For general purpose switching application. ORDERING INFORMATION Type No. Marking BAV70DW KJA SOT-363 Package Code SOT-363 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Characteristic Value VRM VRRM VRWM VR VR(RMS) IFSM IO Non-Repetitive Peak Reverse Voltage Peak repetitive reverse voltage Working peak reverse voltage DC reverse voltage RMS Reverse voltage Non-repetitive peak forward surge current @t=1.0μs @t=1.0s Average rectified output current 100 75 53 2.0 1.
