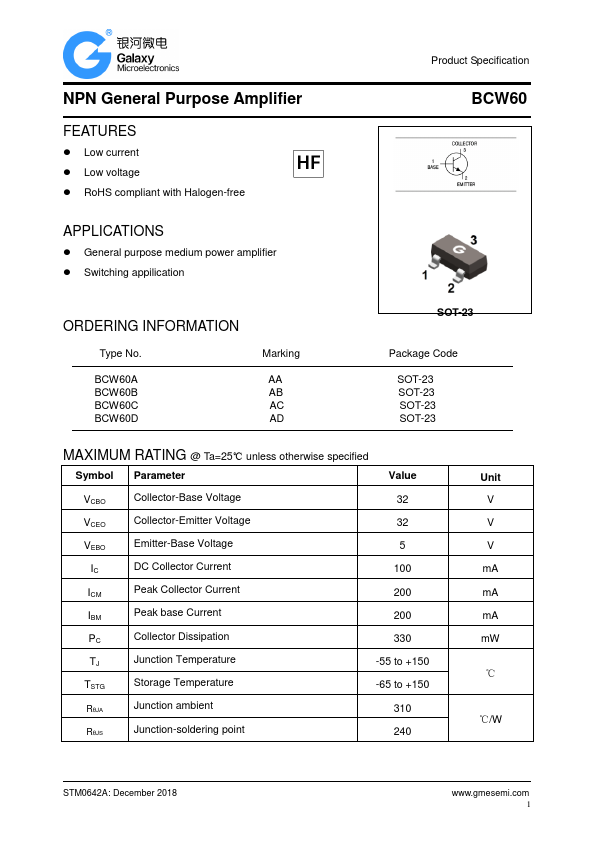

BCW60A
FEATURES
- Low current
- Low voltage
- Ro HS pliant with Halogen-free
Product Specification
BCW60
APPLICATIONS
- General purpose medium power amplifier
- Switching appilication
ORDERING INFORMATION
Type No.
BCW60A BCW60B BCW60C BCW60D
Marking
AA AB AC AD
SOT-23
Package Code
SOT-23 SOT-23 SOT-23 SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol Parameter
Value
VCBO
Collector-Base Voltage
VCEO
Collector-Emitter Voltage
VEBO
Emitter-Base Voltage
DC Collector Current
Peak Collector Current
Peak base Current
PC TJ TSTG
Collector Dissipation Junction Temperature Storage Temperature
330 -55 to +150 -65 to +150
RθJA
Junction...
