BCW67B
BCW67B is PNP Silicon Epitaxial Planar Transistor manufactured by Galaxy Microelectronics.
- Part of the BCW67 comparator family.
- Part of the BCW67 comparator family.

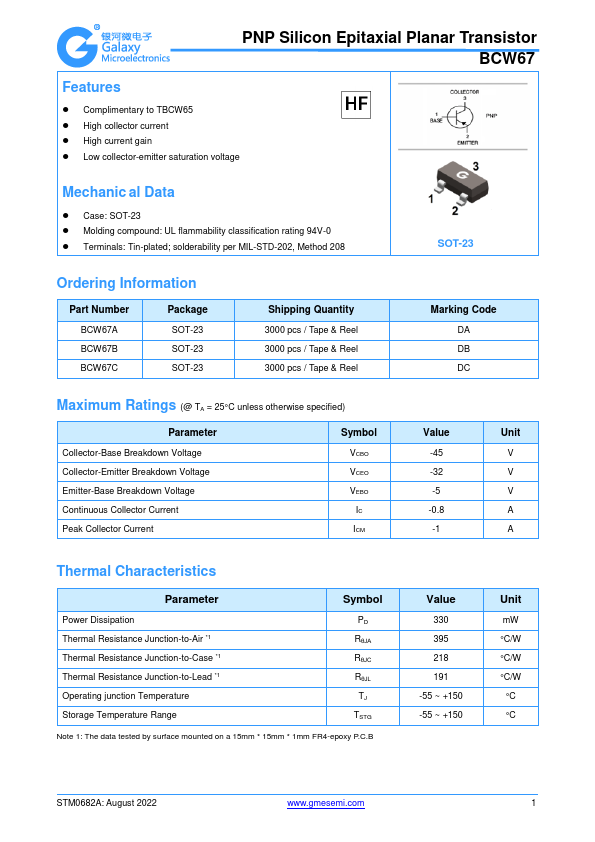

PNP Silicon Epitaxial Planar Transistor BCW67
Features
- plimentary to TBCW65
- High collector current
- High current gain
- Low collector-emitter saturation voltage
Mechanic al Data
- Case: SOT-23
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
SOT-23
Ordering Information
Part Number BCW67A BCW67B BCW67C
Package SOT-23 SOT-23 SOT-23
Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code DA DB DC
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown...
